Electric Hoist VS Winch

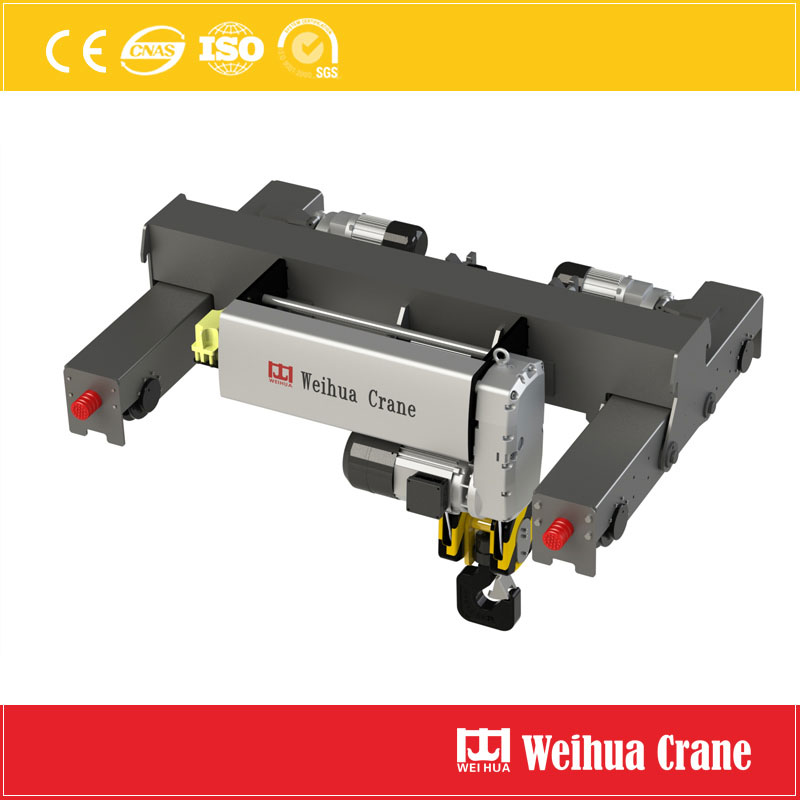

The Electric Hoist: Precision Lifting Specialist

• What it is: An electric hoist is engineered primarily for vertical lifting. It’s designed to lift loads straight up and lower them straight down, often suspended from an overhead structure like an I-beam, gantry, or trolley system.

• Key Features:

  • Load Chain or Wire Rope: Uses robust load chain (common in smaller models) or wire rope.

  • Precise Control: Features precise up/down controls, often with multiple speed options (including creep speed for delicate positioning).

  • Integrated Braking: Employs critical safety brakes (mechanical load brakes, disc brakes) that automatically engage if power is lost or when stopping, preventing uncontrolled descent. This is paramount for overhead lifting safety.

  • Hook Mounting: Typically has a top hook for suspension and a bottom hook for attaching the load.

  • Duty Cycle: Rated for specific duty cycles (e.g., CMAA classes in the US) indicating how frequently and intensively they can operate.

  • Safety Certifications: Often built to stringent lifting standards (like ASME B30.16).

• Primary Applications: Factories, warehouses, workshops, assembly lines, loading docks, construction sites (for materials), stage rigging, auto repair shops (lifting engines).

• Pros:

  • Superior Safety for Lifting: Automatic braking systems are designed for overhead lifting safety.
  • Precise Load Control: Excellent for positioning loads accurately.
  • High Efficiency in Vertical Lift: Optimized for straight-up lifting.
  • Rigorous Standards: Built and tested to handle suspended loads safely.

• Cons:

  • Limited to Vertical/Short Horizontal: Not designed for sustained pulling over long distances or significant horizontal dragging.
  • Requires Overhead Support: Needs a strong, stable structure for mounting.
  • Generally Higher Cost: Engineering for safety and precision adds cost.
  • Less Portable: Often fixed or mounted on trolleys within a defined area.

The Electric Winch: The Rugged Pulling Machine

• What it is: An electric winch is designed primarily for horizontal pulling (or pulling at an angle), though it can be used for vertical lifting in specific, controlled scenarios (often requiring extra safety measures).

• Key Features:

  • Wire Rope: Almost exclusively uses steel wire rope wound onto a drum.
  • Powerful Pulling: Geared for high pulling force (line pull) measured in pounds or kilograms, often achieved with significant gear reduction.
  • Drum Design: Features a wider drum designed to spool multiple layers of rope efficiently during pulling operations.
  • Mounting Options: Designed for mounting on vehicles (bumpers, winch plates), trailers, or fixed anchor points (floors, walls).
  • Braking: Often relies on the motor or a simple ratchet brake when power is off. Automatic load-holding brakes like those on hoists are less common and not standard.
  • Portability: Many models are designed to be relatively portable or vehicle-mounted.

• Primary Applications: Vehicle recovery (off-road trucks, ATVs, boats), marine applications (anchor retrieval, docking), pulling loads horizontally (logs, equipment, trailers), dragging loads across surfaces, tensioning lines.

• Pros:

  • High Pulling Force: Excels at dragging or recovering heavy loads horizontally.
  • Long Cable Pulls: Designed to handle spooling in and out significant lengths of cable.
  • Versatile Mounting: Can be mounted on vehicles, trailers, or fixed points.
  • Generally More Portable: Often designed for mobile use.
  • Cost: Often less expensive than a hoist of comparable capacity (though high-end winches can be very pricey).

• Cons:

  • Critical Safety Limitation: Lacks the automatic, failsafe braking systems standard on hoists. Using a winch for vertical lifting without additional, verified safety mechanisms is extremely dangerous.
  • Less Precise Control: Controls are usually simpler (in/out), less suited for fine positioning.
  • Overheating Risk: Can overheat during sustained heavy pulling under load.
  • Not Primarily for Lifting: While possible with extreme caution and rigging knowledge, it’s not their core design function.

Electric Hoist vs Electric Winch: Key Differences Summary

Feature	Electric Hoist	Electric Winch
Primary Use	Vertical Lifting	Horizontal Pulling
Key Strength	Precision, Safety in Lifting	Raw Pulling Power
Braking	Automatic, Failsafe Load Brake	Motor Brake / Ratchet (Less Secure)
Load Control	High Precision	Basic In/Out
Mounting	Overhead Structure (I-beam, Gantry)	Vehicle, Trailer, Ground Anchor
Cable/Rope	Load Chain or Wire Rope	Primarily Wire Rope
Drum	Narrower (for single layer)	Wider (for multi-layer spooling)
Duty Cycle	Defined (CMAA, FEM, etc.)	Less Standardized
Portability	Lower (Often Fixed)	Higher (Often Vehicle-Mounted)
Safety Std.	Rigorous (ASME B30.16, etc.)	Less Rigorous (Often ANSI/SAE J706)
Ideal For	Lifting engines, machinery, materials overhead	Vehicle recovery, dragging logs, pulling boats, tensioning

Which One Should You Choose? The Critical Question

• 1. Need to lift loads vertically overhead? Choose an Electric Hoist. Its integrated safety brakes and design for suspended loads are non-negotiable for safety. Using a winch overhead is inherently risky without extensive, expert modifications and constant vigilance.
• 2. Need to pull loads horizontally or at an angle (vehicle recovery, dragging, tensioning)? Choose an Electric Winch. It’s built for the task, offers powerful pulling, and handles long cable lengths effectively.
• 3. Need to lift vertically occasionally but mostly pull? A Winch might suffice ONLY if: You fully understand the risks, implement a redundant safety system (like a mechanical block), ensure the winch is rated for lifting (some industrial ones are, most consumer ones aren’t), and exercise extreme caution. When in doubt, use a hoist for lifting.

Don’t be fooled by the superficial similarity of a motor winding cable. Electric hoists and winches are specialized tools for fundamentally different tasks. The electric hoist is the safe, precise champion of vertical lifting. The electric winch is the powerful workhorse for horizontal pulling and recovery.

Always prioritize safety. Using a winch for overhead lifting without proper safeguards is asking for a catastrophic failure. Conversely, using a hoist for heavy horizontal dragging is inefficient and can damage it. Understand your primary need (lift vs. pull), consider the mounting requirements, and above all, respect the critical safety differences, especially regarding braking. Choose the right tool for the job, and operate it within its designed limits.
