Electric Hoist Wiring Diagram

What Is an Electric Hoist Wiring Diagram?

An electric hoist wiring diagram is a schematic drawing that illustrates how the electrical components of a hoist are connected. It shows the pathways for power, control signals, safety mechanisms, and motor functions, helping users troubleshoot, install, or modify their hoist systems.

Electric Hoist Wiring Diagram

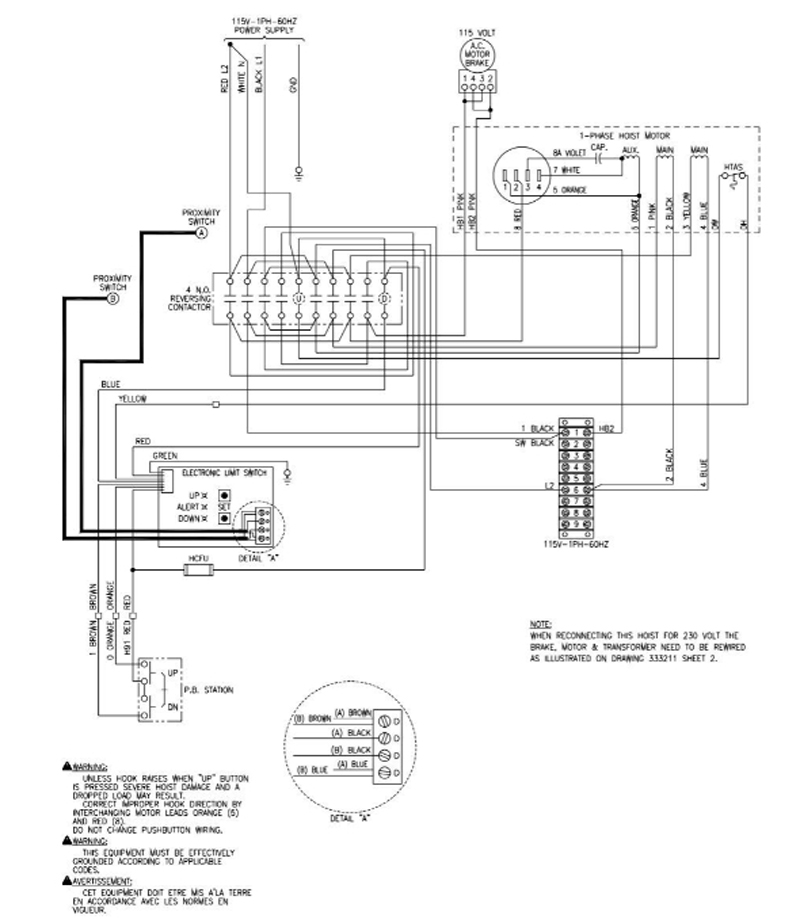

1 PHASE, 115/230 VOLT RECONNECTABLE, SINGLE SPEED HOIST(Electronic Limit Switch)

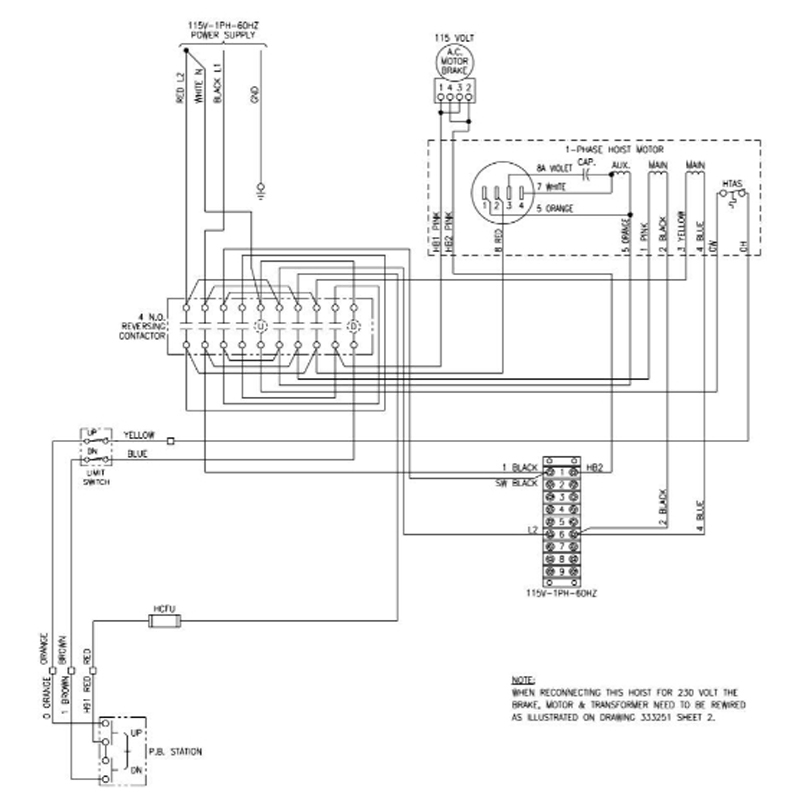

1 PHASE, 115/230 VOLT RECONNECTABLE, SINGLE SPEED HOIST(Paddle Limit Switch)

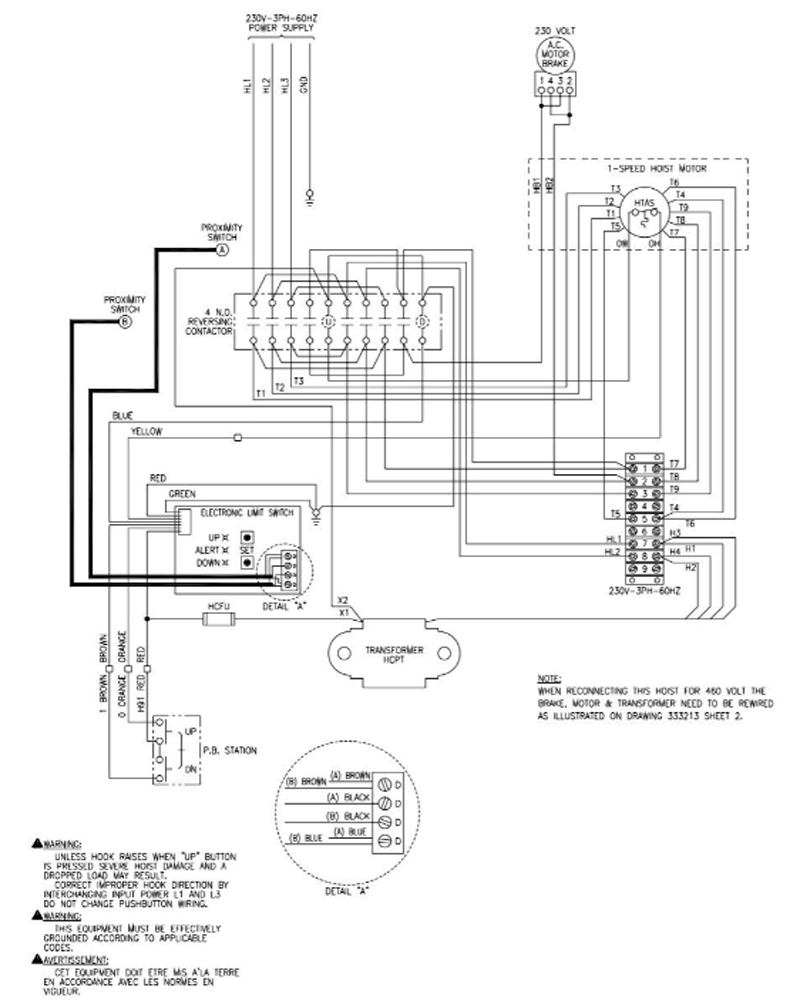

3 PHASE, 230/460 VOLT RECONNECTABLE, SINGLE SPEED HOIST(Electronic Limit Switch)

Key Components in an Electric Hoist Wiring Diagram

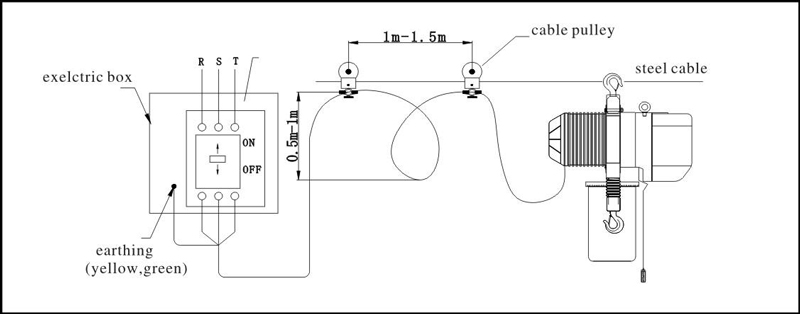

1. Power Supply Connection

   • Shows where the main power (typically 220V or 380V AC) enters the system.

   • Includes circuit breakers or fuses for protection.

2. Main Contactor

   • Controls the overall power flow to the hoist.

   • Activates or deactivates the motor circuit.

3. Control Transformer (Optional)

   • Steps down voltage for safe operation of control buttons or relays.

4. Push Button Pendant

   • A control station with UP, DOWN, and EMERGENCY STOP buttons.

   • Usually operates on 24V or 48V for safety.

5. Motor and Brake

   • The hoist motor is wired with a brake release mechanism.

   • Often includes thermal overload protection.

6. Limit Switches

   • Prevent over-travel in the upward or downward direction.

   • Automatically disconnect power when hoist reaches limit points.

7. Grounding

   • Ensures all metallic parts are grounded to prevent electrical shock.

Tips for Reading and Using a Wiring Diagram

• Always disconnect power before inspecting or modifying the system.

• Use color-coded wiring whenever possible for easy identification.

• Label wires during maintenance or installation to simplify troubleshooting.

• Refer to the manufacturer’s wiring diagram for specific models like those from Weihua, Yale, CM, or Kito.

Common Issues Found via Wiring Diagrams

• Improper motor rotation direction

• Control pendant malfunction

• Non-functioning limit switches

• Loose or corroded terminal connections

• Blown fuse or tripped breaker

Using the wiring diagram as a reference allows for fast diagnosis and efficient repair.

Final Thoughts

A proper understanding of the electric hoist wiring diagram ensures that your lifting equipment operates safely and efficiently. Whether you’re setting up a new hoist or troubleshooting an existing one, the wiring diagram is your essential tool for navigating the electrical layout.

Always consult a certified electrician if you’re unsure or dealing with high-voltage connections.
