Is rope or cable better on a winch?

The choice of using ropes or cables on the winch needs to be determined based on specific needs and scenarios. Both have their own advantages and disadvantages.

Winch: Rope vs. Cable

Assuming you’ve determined a winch is the right tool for your pulling job, let’s break down the rope vs. cable debate:

1. Steel Wire Cable (The Traditional Choice):

   • Pros:

     • Durability & Abrasion Resistance: Extremely resistant to cuts, abrasion from rocks, sharp edges, and heat (like friction from a snatch block). Handles rough environments well.
     • High Strength: Proven high tensile strength for heavy loads.
     • UV Resistance: Not degraded by sunlight.
     • Lower Stretch: Minimal elongation under load, providing more direct feel and control (though still some stretch exists).

   • Nevýhody:

     • Weight: Significantly heavier than synthetic rope, reducing effective pulling capacity slightly and making handling harder.
     • Safety Hazard (Fraying & Snapping): When damaged, it frays into sharp, dangerous “fishhooks.” If it snaps under load, the recoil energy is massive and potentially lethal. Requires thick gloves.
     • Corrosion: Can rust, especially in marine environments, requiring regular lubrication and inspection.
     • Storage: Can develop “memory” and kinks, making it harder to wind smoothly onto the drum.
     • Handling: Stiff and difficult to handle, especially when cold.

2. Synthetic Rope (Plasma®, Dyneema®, AmSteel® – The Modern Contender):

   • Pros:

     • Bezpečnost: The biggest advantage. If it breaks, it drops to the ground with minimal recoil energy. No dangerous wire fragments.
     • Lighter Weight: Dramatically lighter than steel cable, increasing effective winch pulling capacity and making handling much easier.
     • Easier Handling: Softer, more flexible, and easier on the hands (gloves still recommended).
     • Floats: Ideal for marine applications.
     • No Corrosion: Immune to rust.
     • Winds Smoother: Generally winds onto the drum more evenly than kinked cable.

   • Nevýhody:

     • Abrasion & Cut Vulnerability: Susceptible to damage from sharp rocks, edges, and heat (melts easily from friction). Requires protective sleeves (chafe guards) in abrasive situations.
     • UV Degradation: Prolonged exposure to strong sunlight weakens it over time.
     • Moisture Absorption: Can absorb water (especially if dirty), potentially freezing in cold weather and adding weight. Needs to dry.
     • Stretch: More elongation under load than steel cable, though modern high-modulus fibers minimize this significantly compared to older synthetics. This can sometimes store energy like a spring.
     • Inspection: Damage (internal or external) can be harder to spot than obvious kinks or broken strands in cable.

So, Which is “Better” for a Winch? There’s no single “best” answer; it depends entirely on your application.

• Choose Steel Cable If:

  • You frequently work in extremely abrasive environments (rock crawling, demolition debris).
  • Heat generation (from prolonged winching or snatch blocks) is a major concern.
  • UV exposure is constant and unavoidable.
  • You prioritize maximum cut resistance above all else.
  • Crucially, you understand and rigorously manage the safety risks (Rukavice, inspection, awareness of snap danger).

• Choose Synthetic Rope If:

  • Safety is your top priority (reduced recoil hazard).
  • You want maximum effective pulling capacity (due to lighter weight).
  • Ease of handling and reduced weight are important.
  • You work in marine environments (floats, no rust).
  • You are diligent about using chafe guards and inspecting for damage.
  • Your environment isn’t constantly filled with sharp, abrasive edges or extreme heat sources.

The difference between electric winch and electric chain hoist

• Winch (Electric, Hydraulic, Manual):

  • Primary Function: Pulling loads horizontally or on an incline (přetahování, towing, recovery). They generate high pulling force in one direction.
  • Line Handling: Winds the rope or cable onto a drum. Line speed and pulling capacity vary significantly depending on the load and layer of line on the drum.
  • Typical Uses: Vyprošťování vozidla (4x4s, čtyřkolky), námořní aplikace (anchoring, dokování), construction site material dragging, forestry, pulling cables.
  • Lifting? While sometimes used for light, controlled lifting if specifically designed and rated for it, winches are generally NOT designed or safe for overhead lifting of personnel or critical loads. Safety factors and control mechanisms differ.

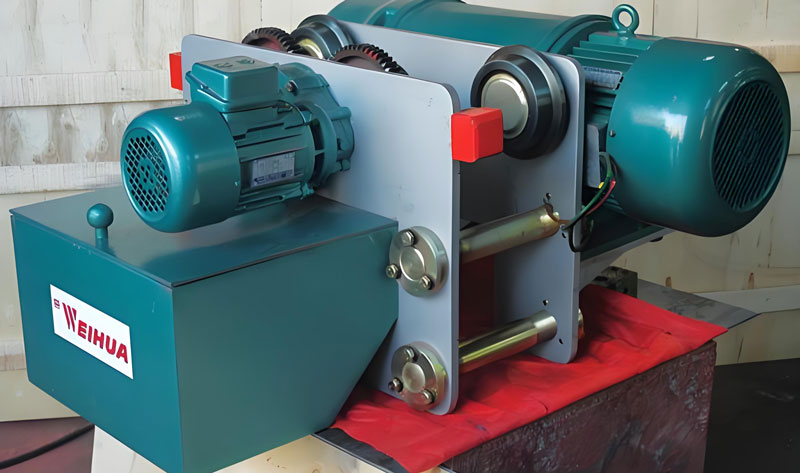

• Elektrický řetězový kladkostroj:

  • Primary Function: Lifting and lowering loads vertically with precise control. Their design is optimized for overhead lifting.
  • Lifting Element: Uses a durable, welded load chain (not rope or wire cable) that runs over a sprocket. The chain provides high strength in a compact form and inherently prevents rotation of the load.
  • Přesnost: Offers excellent control for precise load positioning during lifting and lowering.
  • Typical Uses: Factory assembly lines, sklady, machine shops, maintenance bays, staveniště (lifting materials to height), stage rigging – anywhere controlled vertical movement is needed.
  • Bezpečnost: Built with specific safety features (load brakes, limit switches) for overhead lifting applications. Often used with beam trolleys on runways.

The rope vs. cable decision for your winch hinges on your specific needs and risk tolerance. Synthetic rope offers compelling safety and handling advantages for most recreational and many industrial pulling applications, provided you protect it from abrasion. Steel cable remains the go-to for the toughest, most abrasive jobs where its durability outweighs the safety concerns. Pamatujte si, neither rope nor cable on a winch substitutes for the purpose-built welded load chain of an elektrický řetězový kladkostroj when the task involves safe, controlled overhead lifting. Always choose the right tool and the right line for the job, and prioritize safety above all else!
