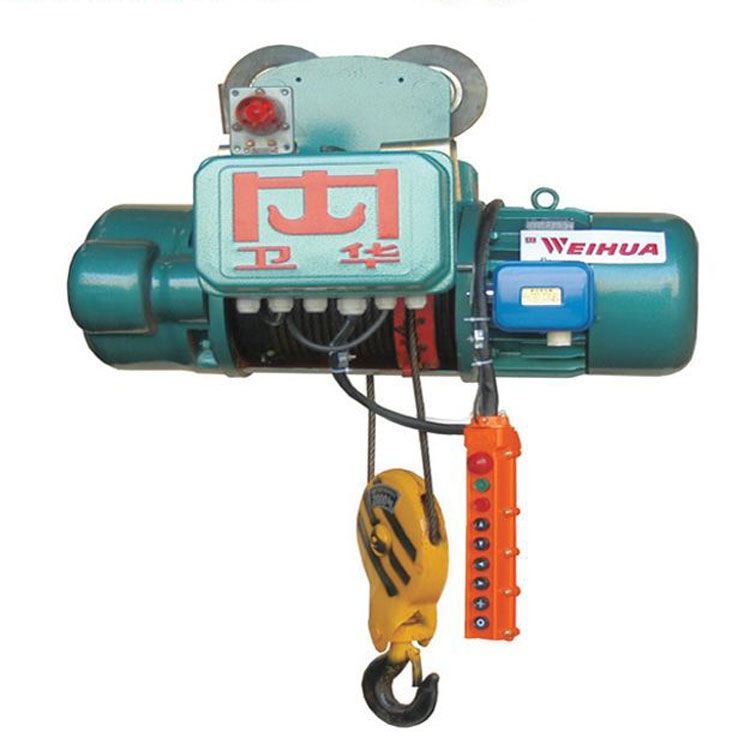

Elektrický kladkostroj do dílny

Looking for a reliable elektrický kladkostroj pro dílnu operations? Weihua’s Elektrický zvedák is your ideal choice for enhancing productivity, bezpečnost, and convenience in any workshop environment.

Electric Hoist For Workshop Core Parameters

Parametr	WH-EH Series (0.5 – 5 t)	WH-EHX Series (5 – 20 t)	Poznámky
Jmenovitá kapacita	0.5 t, 1 t, 2 t, 3 t, 5 t	5 t, 7.5 t, 10 t, 15 t, 20 t	Select based on workshop load requirements
Standard Lifting Height	6 m, 9 m, 12 m	6 m, 9 m, 12 m	Extensions up to 24 m available
Rychlost zvedání	8 m/min (single), 4 / 8 m/min (two-speed)	4 / 8 m/min (two-speed)	Two-speed optional on EH; standard on EHX
Výkon motoru	1.5 kW – 7.5 kW	15 kW – 37 kW	TEFC, class F insulation, S3 25% duty
Gearbox Ratio	28 : 1	40 : 1	Helical gears, >94% účinnost
Chain Specification	Ø7 × 21 mm alloy steel DIN 6,806	Ø10 × 30 mm alloy steel DIN 6,806	Tepelně zpracované, pearlitic finish
Hook Type	Forged, 360°-rotatable, safety latch	Forged, 360°-rotatable, safety latch	Standard hook opening: 25 – 60 mm depending on capacity
Trolley Wheelbase	70 – 160 mm (geared)	100 – 200 mm (geared)	Plain and powered trolley options available
Typ brzdy	Electromagnetic disc, spring-applied	Electromagnetic disc, spring-applied	Auto-reengages on power loss
Řídicí napětí	48 V DC pendant; 220 V / 380 V AC power	48 V DC pendant; 380 V / 415 V AC power	Pendant IP65; radio remote optional
Okolní teplota	–20 °C … +40 °C	–20 °C … +40 °C	Humidity up to 90% non-condensing
Třída ochrany	IP54 (standard) / IP65 (volitelný)	IP54 (standard) / IP65 (volitelný)	Electronics sealed against dust and moisture
Noise Level	< 75 dB(A)	< 78 dB(A)	Measured at 1 m distance under no-load
Čistá hmotnost	120 – 350 kg	500 – 1,200 kg	Varies by capacity, vozík, and options
Normy & Certs	EN 14492-2, ISO 13849, CE	EN 14492-2, ISO 13849, CE	SGS factory inspection available
Záruka	24 měsíce (motor/gearbox), 12 months parts	24 měsíce (motor/gearbox), 12 months parts	Extended and on-site service packages available

Poznámka: Feel free to let us know if you need a customized parameter set, CAD drawings, or integration support for your specific workshop crane layout.

Electric Hoist For Workshop Key Features

• 1. High Performance: Equipped with a powerful motor and precision gearbox for stable operation and long service life.
• 2. Safe and Reliable: Integrated limit switches and overload protection ensure maximum safety for operators and equipment.
• 3. Easy Operation: User-friendly controls allow precise lifting and lowering, improving work efficiency in your workshop.
• 4. Přizpůsobitelné: Available in various capacities, lifting heights, and speeds to meet specific workshop requirements.
• 5. Nízká údržba: High-quality components and durable construction reduce downtime and maintenance costs.

Product Highlights

• Model Range

  • WH-EH Series: 0.5 t – 5 t lifting capacity

  • WH-EHX Series: 5 t – 20 t heavy-duty workshop hoist

• Výška zdvihu: Standard up to 12 m; extensions available up to 24 m

• Rychlost zvedání: Jedna rychlost (8 m/min) or two-speed (4 + 8 m/min) options

Key Components & Structure

• Hoist Frame:

  • Welded, high-strength steel plate frame.

  • Modular design for quick access and easy maintenance.

• Zátěžový řetěz & Háček:

  • Alloy steel chain, heat-treated for extra wear resistance.

  • 360°-rotatable forged hook with safety latch.

• Trolley Options:

  • Plain trolley for straight-run beams

  • Geared trolley with adjustable wheelbase (70–160 mm)

  • Powered trolley for automated crane systems

Motor & Gearbox

• Motor:

  • Totally Enclosed Fan-Cooled (TEFC) motor,

  • Insulation class F, duty rating S3 25%.

• Gearbox:

  • Helical gear transmission

  • Hardened and ground gear teeth for low noise (<75 dB) and high efficiency (>94%)

Bezpečnost & Control Systems

• Ochrana proti přetížení

  • Electronic load limiter prevents hoisting above rated capacity.

• Koncové spínače

  • Upper and lower mechanical limit switches to prevent over-travel.

• Brake System

  • Electromagnetic spring-applied disc brake; auto-reengages on power loss.

• Nouzové zastavení

  • Red, mushroom-head E-stop button on pendant control.

• Pendant Control

  • IP65 waterproof enclosure, ergonomic design, 4 m cable (customizable length).

• Radio Remote (Volitelný)

  • 8-button transmitter; range up to 50 m; battery status indicator.

Instalace & Údržba

• Montáž

  • Can be hung directly from a beam or attached to a trolley.

  • Quick-connect brackets and adjustable clamps simplify fitting.

• Routine Checks

  • Daily: Visual chain inspection, hook latch check, brake function test.

  • Monthly: Chain lubrication, motor temperature check, gearbox oil level.

  • Annually: Complete inspection by certified technician, load test at 125% rated capacity.

Normy & Osvědčení

• Complies with:

  • EN 14492-2 (European Crane Safety Standard)

  • ISO 13849 (Safety-related parts of control systems)

  • CE marking, SGS factory inspection certificates available on request

• Environmental Rating: IP54 (standard), IP65 (volitelný)

Optional Accessories

• Anti-collision Buffer: Rubber buffers for end-of-travel cushioning

• Load Weighing Module: Real-time weight display on pendant

• Variable Frequency Drive (VFD): Stepless speed control, soft start/stop

• Load-Positioning Laser: Precision target pointer for repeatable lifts

• Custom Paint & Branding: RAL colour matching and logo silkscreen

After-Sales Service & Záruka

• Záruka: 24 months on motor and gearbox; 12 months on other parts

• Spare Parts: 5-year guaranteed availability

• Technical Support: 24/7 hotline; remote diagnostics via built-in IoT module (volitelný)

• On-site Training: Operator and maintenance staff training packages

Electric Hoist For Workshop Aplikace

The Weihua electric hoist for workshop is widely used in equipment maintenance, material handling, machine part assembly, and other workshop lifting scenarios. It can be installed on single beam cranes, jib cranes, or fixed suspension points, providing flexible and convenient lifting solutions.
