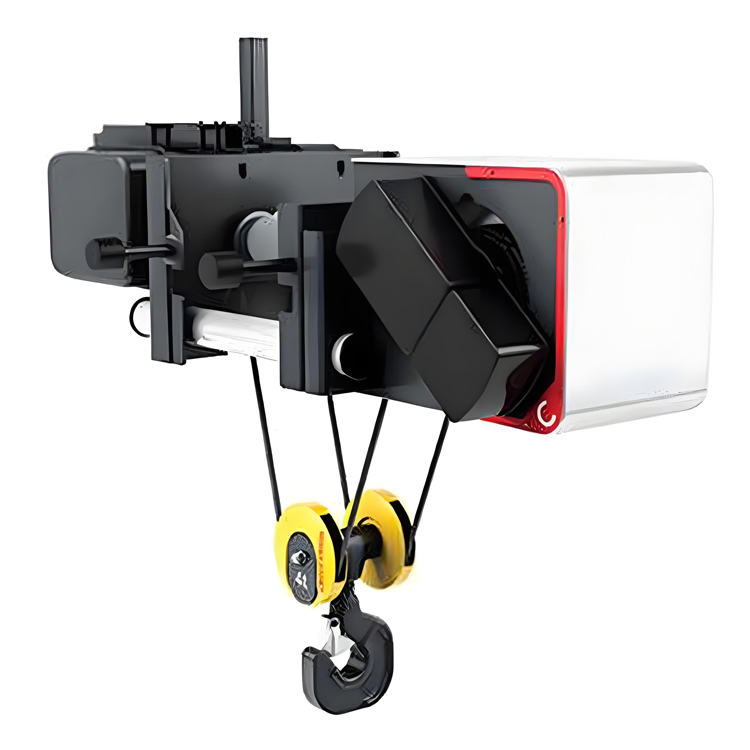

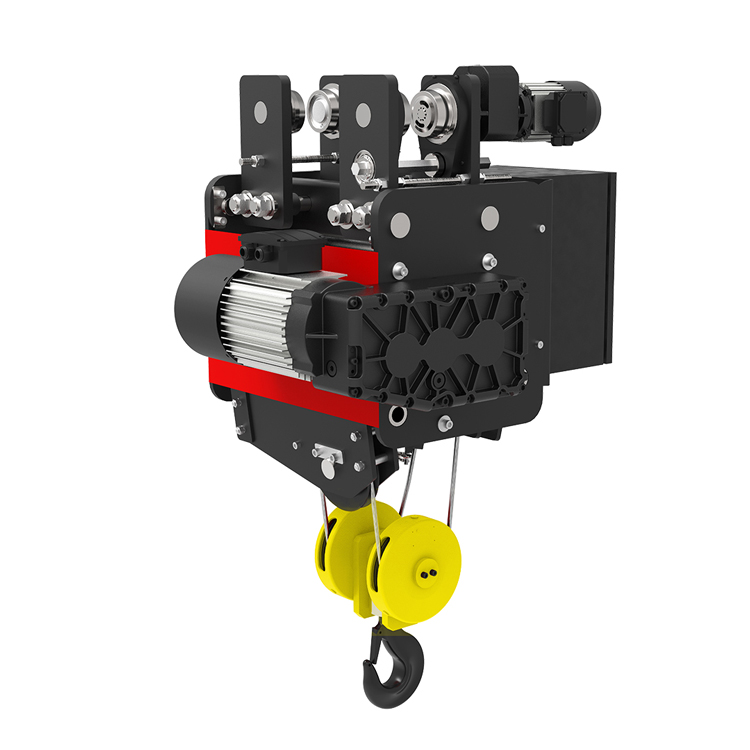

20 Elektrisches Kabelschalter

20 ft electric cable hoist parameters

Classification	Parameter name	Details
Basic parameters	Bewertungslast	0.5 Tonnen, 1 Tonnen, 2 Tonnen, 3 Tonnen, 5 Tonnen, 10 Tonnen, 24 Tonnen (optional)
	Hubhöhe	20 Füße (about 9 Zu 13 Meter), support customization
	Versorgungsspannung	Three-phase 380V/415V (industrial) or single-phase 220V (light load)
	Power frequency	50Hz/60Hz (adjusted according to region)
	Motorleistung	1 Tonne: 1.5kW; 2 Tonne: 3kW; 5 Tonne: 7.5kW
Performance parameters	Hubgeschwindigkeit (no load/light load)	10-15 Meter/Minute
	Hubgeschwindigkeit (Volllast)	5-8 Meter/Minute (adjustable requires frequency converter)
	Descending speed	Slightly faster than lifting speed (electromagnetic brake control)
	Spezifikationen für Drahtseile	1 Tonne: Φ6-8mm; 2 Tonne: Φ8-10mm; 5 Tonne: Φ12-14mm (Zugfestigkeit ≥1770MPa)
Structure and control	Installationsmethode	Fester Typ (bracket/I-beam) or running type (with electric trolley, Geschwindigkeit 8-20 Meter/Minute)
	Kontrollmethode	Handle button (wired/wireless remote control), optional frequency conversion control (soft start, stepless speed regulation)
	Schutzstufe	IP54/IP55 (staubdicht, spritzwassergeschützt)
Sicherheitsvorrichtung	Überlastschutz	Electronic sensor or mechanical clutch
	Endschalter	Automatic power off at upper and lower limits
	Nothalt	Cut off power with one click
	Dual Bremssystem	Electromagnetic brake + mechanische Bremse (self-locking when power is off)
Environmental requirements	Temperature range	-20℃ ~ +40℃ (low temperature requires heating device)
	Humidity	≤85% RH (no condensation)
	Applicable places	Workshops, Lagerhäuser, Docks (flammable and explosive environments are prohibited)
Standards and Certifications	Internationale Standards	FEM (European standards), ISO, CE certification
	Jobebene	FEM 1Am (light) to 2m (intermediate), geeignet für 4 hours a day of medium load

Remark: The actual parameters may vary depending on the manufacturer and model, please refer to the product manual. Optional functions (such as frequency conversion speed regulation, anti-corrosion treatment, usw.) need to be confirmed with the supplier.

20 ft electric cable hoist selection and usage recommendations

Load matching:

• Light load scenario (≤5 tons): Select single-phase 220V motor to reduce costs.
• Heavy load scenario (≥5 tons): Three-phase 380V motor + two-speed control is required to ensure stability.

Function extension:

• Frequent movement requirements: Install an electric sports car to realize automatic walking on horizontal tracks.
• Komplexe Umgebung: optional Explosionsgeschützter elektrischer Hebezeug (chemical industry scene) or low-temperature resistant model (-20℃ cold storage).

Safety regulations:

• Overloading is strictly prohibited: actual load ≤ 80% of rated value (such as 5-ton hoist load ≤ 4 Tonnen).
• Regular inspection: Measure the diameter wear of the wire rope every month (replacement is required if it exceeds 10%).

The difference between 20 ft electric cable hoist and chain hoist

Vergleichselement	Elektrischer Seilaufzug	Elektrokettenzug
Lifting medium	Stahldrahtseil (gute Flexibilität, suitable for precision lifting)	Lifting chain (verschleißfest, suitable for high-frequency use)
Applicable height	Medium and long distance (6-30 Meter)	Short distance (3-12 Meter)
Maintenance cost	Hoch (requires regular lubrication and checking for broken wires)	Untere (easy chain replacement)
Typisches Szenario	Automobile maintenance, precision equipment installation	Warehouse handling, production line hoisting

20 ft electric cable hoist price range and influencing factors

The price of 20 ft electric cable hoist is affected by multiple factors such as rated load, usage scenario, protection level, motor brand, non-standard customization, usw. The price range ranges from US$1,000 to US$10,000.

20 ft electric cable hoist buying advice

Prioritize your needs:

• Industrial scenario: Choose the standard 20-foot (6.1-meter) Modell, which is cost-effective and easy to maintain.
• Special needs: If a height of 0.5 meters is required, it is recommended to use a mini hoist or pneumatic equipment.

Cost control tips:

• Avoid non-standard customization and choose common models in the market (wie zum Beispiel 1 ton/6 meters).
• Domestic products replace imported products (the price of domestic products is about 1/3-1/2 of imported brands).

Beware of low price traps:

• Low-priced products may omit safety devices (such as overload protection), increasing the risk of accidents.

20 ft electric cable hoist suppliers

Als Lieferant von 20 Elektrisches Kabelschalter, Weihua Group has the advantages of high cost performance and support for customization.

For an accurate quote, please provide the following information:

• 1. Load requirements (wie zum Beispiel 0.5 tons/5 tons)
• 2. Use environment (such as explosion-proof, hohe Temperatur, Luftfeuchtigkeit)
• 3. Functional requirements (Fernbedienung, two-speed, frequency conversion)
