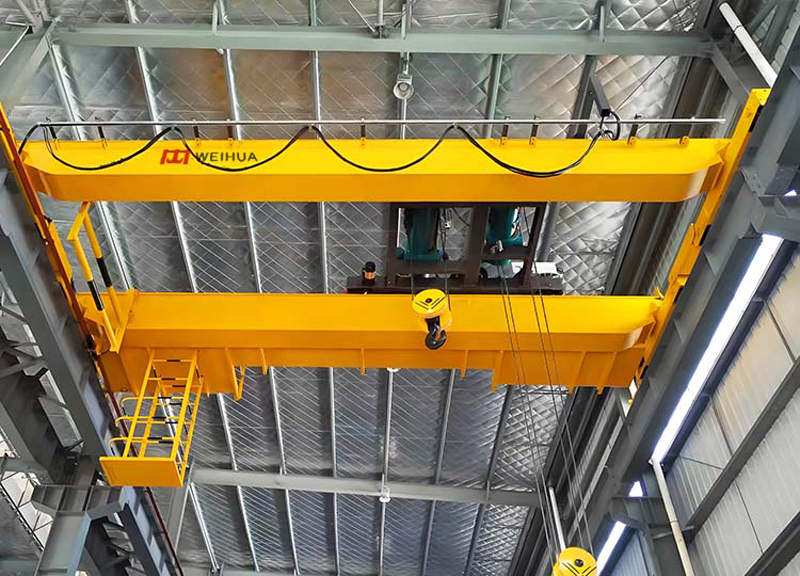

Double Girder Trolley Electric Hoist

Product Introduction

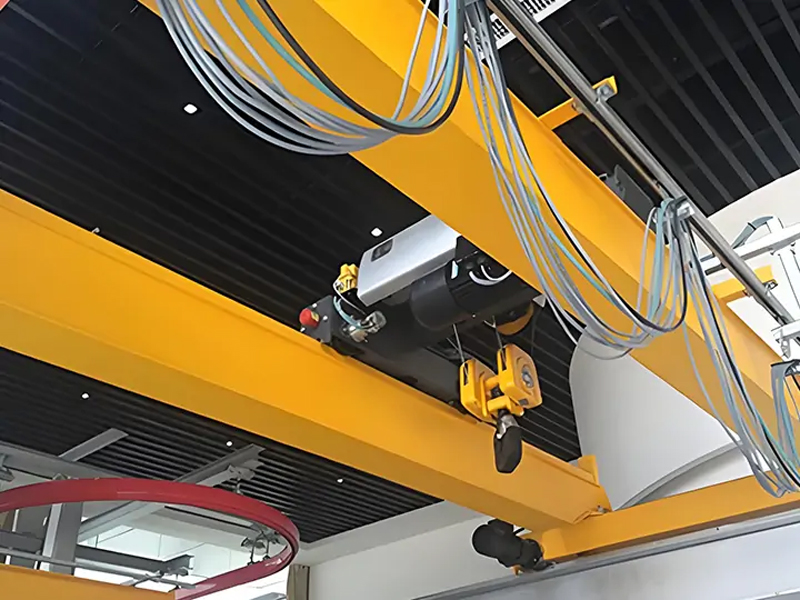

The Double Girder Trolley Electric Hoist is a high-capacity, industrial-grade lifting solution designed for integration with double girder overhead cranes. This robust system combines a powerful elektrischer Hebezeug mounted on a motorized trolley that travels along the crane’s twin bridge girders. It is engineered for heavy-duty applications requiring high lifting heights, precise load handling, and exceptional reliability in demanding environments such as steel plants, fabrication shops, Lagerhäuser, and foundries. By optimizing the workspace and providing superior hook approach, it maximizes productivity and operational safety.

Key Features & Advantages

• 1. Hohe Hebekapazität & Dienstklasse

  • Designed for heavy-duty and severe-duty cycles (FEM 3m / 4M, Class M6/M7).

  • Capable of handling loads from 5 tons to over 100 Tonnen, making it suitable for the most challenging industrial tasks.

• 2. Superior Hook Approach

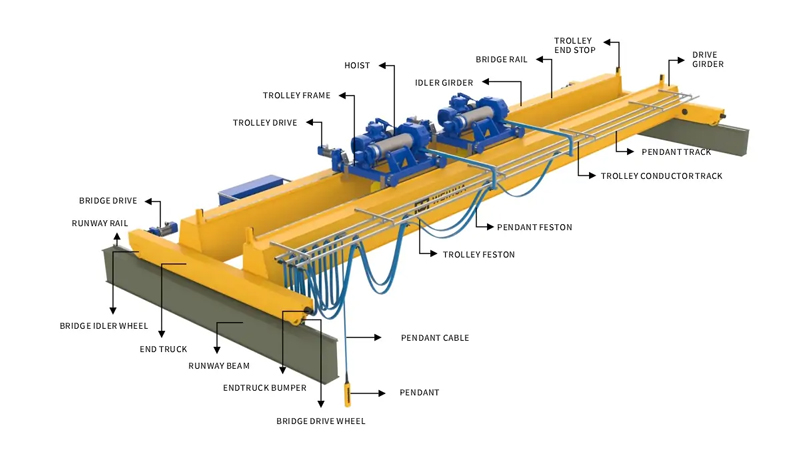

  • The design of the double girder system allows the hoist to be positioned above the girders, minimizing the headroom and providing a much closer hook approach to the crane girders compared to single girder systems. This maximizes the usable lifting height within your facility.

• 3. Precise and Smooth Control

  • Equipped with Variable Frequency Control (VFD) for both hoisting and traversing motions. This ensures smooth acceleration and deceleration, precise load spotting, and reduced load swing, protecting both the load and the equipment.

• 4. Verbesserte Sicherheit & Reliability

  • Redundant Braking System: Features both an electromagnetic disc brake and a mechanical load brake for fail-safe operation.
  • Advanced Limit Switches: Upper and lower limit switches prevent hook over-travel. A overload limit device automatically cuts off power in case of excess load.
  • IP54/IP55 Protection Rating: The electrical components are well-sealed against dust and water spray, ensuring reliable performance in harsh conditions.

• 5. Modular Trolley Design

  • The motorized trolley is built for smooth travel along the crane girders. Options include dual-speed or VFD control for precise positioning. The compact design provides excellent stability and weight distribution.

• 6. Low Maintenance & Durability

  • Constructed with high-grade steel and premium components for long service life. Easy access to maintenance points simplifies inspection and servicing, reducing downtime.

• 7. Intelligent Control System

  • Can be operated via pendant push button station or radio remote control. Seamless integration with the overall crane control system for coordinated movements.

Technical Parameters Table

Notiz: The following table provides a general specification range. Exact parameters vary by model and capacity.

Feature	Specification Range	Details
Hebekapazität	5 ~ 100+ Tons	Standard models available up to 100 Tonnen; custom designs for higher capacities.
Hebenshöhe	Up to 30 Meter (98 ft)	Custom lifting heights can be engineered as per requirement.
Hubgeschwindigkeit	0.8 ~ 15 m/my (Dual-speed standard)	Speed varies with capacity; VFD allows for adjustable speed control.
Trolley Travelling Speed	5 ~ 30 m/my (20 m/min typical)	VFD control available for precise trolley positioning.
Dienstklasse	FEM 3m, 4M (Class M6, M7)	Suitable for heavy and severe-duty cycles.
Stromversorgung	3-Phase, 380V/415V, 50/60 Hz	Other voltages available (Z.B., 480V, 220V).
Umgebungstemperatur	-20° C bis +40 ° C.	Special designs available for higher or lower temperature ranges.
Insulation Class	Class F / Class H	Provides high thermal stability for motor and electrical systems.
Protection Rating	IP54 / IP55 (Hissen & Trolley)	Protection against dust and water jets.
Kontrolle	Anhänger / Radio Remote	Standard pendant cable length is customizable.

Compatible Crane Applications

This Double Girder Trolley Electric Hoist is specifically designed for use on:

• 1. Double Girder Overhead Cranes: This is the primary and most common application.

• 2. Gantry Cranes (Double Girder): Can be installed on semi-gantry or full gantry cranes where a double box girder design is used.

• 3. Process Cranes: Ideal for specialized industrial processes in metallurgy, casting, and other heavy industries.

• 4. Workshop Cranes: Used in manufacturing and assembly bays for handling heavy machinery, components, and materials.

FAQ: Double Girder Trolley Electric Hoist

Q1: What is the main difference between a single girder and a double girder hoist system?

A: The key difference is structural. A single girder hoist runs under a single beam, which limits its capacity and hook height. A double girder hoist runs between two top-running girders, offering higher capacity, better hook approach, greater lifting height, and is built for more intensive, precise work.

Q2: Can the hoisting and travelling speeds be adjusted?

A: Yes. While dual-speed is standard, we highly recommend Variable Frequency Drives (VFD) for precise control. VFDs allow for soft starts/stops and infinitely variable speed adjustment, which is crucial for handling delicate loads or for precise positioning.

Q3: What safety features are included as standard?

A: Standard safety features typically include an upper/lower limit switch, an overload limit device, a dual braking system (electromagnetic + mechanical), and emergency stop buttons on the pendant. Additional safety options like anti-collision systems and rotational hook blocks are available.

Q4: How is the hoist maintained and serviced?

A: Maintenance is straightforward. Regular checks include visual inspection, verifying brake function, checking wire rope for wear, and ensuring limit switches operate correctly. We provide detailed maintenance manuals and offer service contracts for periodic professional inspection.

Q5: Can this hoist be customized for a specific application?

A: Absolutely. We offer a wide range of customization options, including special lifting heights, capacities, speeds, voltage, and specific duty cycles. We can also provide special hooks, galvanized finishes for corrosive environments, or explosion-proof versions.

Kontaktieren Sie uns

For more information, technical data sheets, or a custom quote tailored to your specific needs, please get in touch with our engineering sales team. We are here to help you find the perfect lifting solution.
