Electric Hoist With Remote Control

Electric hoist with remote control technical parameters

Parameter	Common specifications
Rated lifting capacity	0.5 tons – 20 tons (selected according to model)
Lifting height	3 meters – 30 meters (can be customized to lengthen)
Lifting speed	Single speed: 8-10 m/min; double speed: 0.8-10 m/min
Working voltage	220V/380V (three-phase AC)
Motor power	1.5kW – 15kW (increases with lifting weight)
Remote control distance	Standard 30 meters (up to 100 meters in open environment)
Protection level	IP54/IP55 (dustproof, water spray proof)
Applicable temperature	-20℃ – +40℃ (special models support extreme environments)

Advantages of Electric hoist with remote control

• Ease of operation: Wireless remote control (range of 10-100 meters) enables long-distance control and prevents operators from being in dangerous areas. It is especially suitable for operations in high temperatures, high altitudes or narrow spaces.
• High efficiency and energy saving: The motor adopts frequency conversion technology, which enables smooth start-up and low energy consumption; some models support multi-speed speed adjustment to adapt to different working conditions.
• Safe and reliable: It comes standard with overload protection, limit switch, emergency braking and other devices to prevent the risk of overloading or loss of control.
• Flexible adaptability: It can be installed on I-beam track, gantry or fixed bracket, and is suitable for various scenarios such as workshops, warehouses and docks.
• Low maintenance cost: Modular structure design, key components (such as brake pads, wire ropes) are easy to replace, reducing downtime.

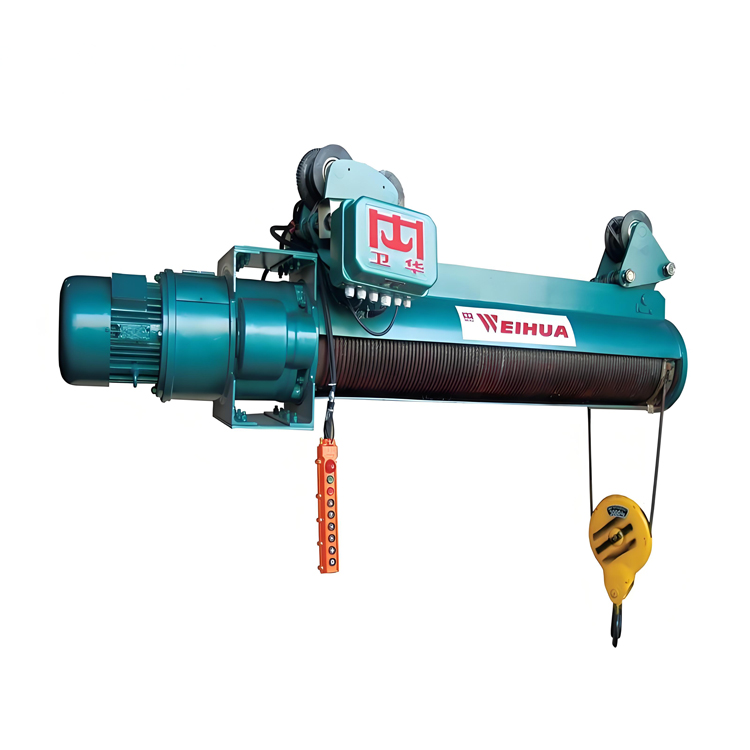

Electric hoist with remote control

The difference between Electric hoist with remote control and ordinary electric hoist

Comparative item	Remote control electric hoist	Ordinary electric hoist
Operation mode	Wireless remote control (remote control)	Manual button/pull switch (needs close range)
Security	Higher (operator stays away from danger zone)	Lower (needs to be close to the device)
Applicable scenarios	Complex environment (high altitude, high temperature, narrow space)	Regular fixed workstation
Cost	Higher (including remote control system)	Lower

Electric hoist with remote control suppliers

The supplier of electric hoist with remote control is Weihua Group. The company has more than 30 years of experience in the crane industry and is the largest and most experienced manufacturer of Electric hoist with remote control in China.

Electric hoist with remote control manufacturers

Electric hoist with remote control application

Electric hoist with remote control is widely used in many industries due to its wireless remote control operation, high security, flexible adaptability and other characteristics.

Electric hoist with remote control for industrial manufacturing

Equipment installation and maintenance

• Scenario: Hoisting, positioning and maintenance of large machinery (such as stamping machines and injection molding machines) in factories.
• Advantages: Remote operation prevents operators from entering the dangerous area at the bottom of the equipment, and precise control ensures precise assembly.

Mold handling

• Scenario: Replacement and transfer of heavy-duty molds in automobile manufacturing.
• Advantages: The multi-speed speed adjustment function enables slow docking of molds and reduces collision damage.

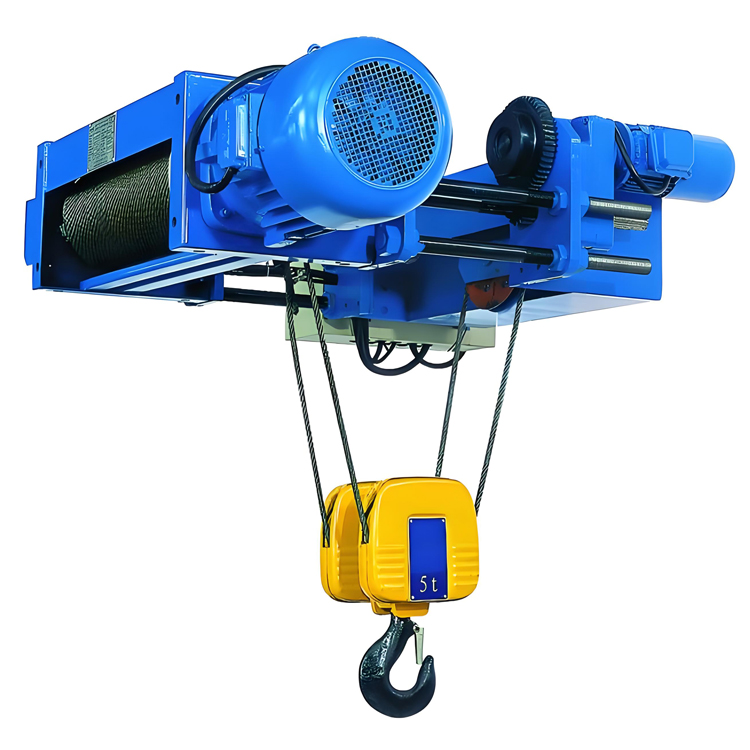

Electric hoist with remote control

Electric hoist with remote control for building and construction fields

Steel structure hoisting

• Scenario: Vertical transportation and installation of steel beams and prefabricated components in high-rise buildings.
• Advantages: Remote control operation covers blind areas for high-altitude operations and reduces the risk of manual climbing.

Building materials handling

• Scene: Stacking and loading and unloading of precast concrete panels and glass curtain walls.
• Advantages: Used with I-beam rails to achieve cross-regional horizontal movement and improve construction efficiency.

Electric hoist with remote control for logistics and warehousing

Container handling

• Scenario: Lifting and stacking of containers in ports or logistics parks.
• Advantages: Remote control and long-distance operation (100 meters) are suitable for large operating sites and reduce manpower scheduling.

High shelf access

• Scenario: Vertical lifting and precise placement of heavy goods in automated warehouses.
• Advantages: The limit switch prevents over-rolling and avoids collision between goods and shelves.

Electric hoist with remote control for logistics and warehousing

Electric hoist with remote control for automotive and marine industries

Car repair

• Scenario: disassembly and assembly of engines and gearboxes in 4S shops or repair shops.
• Advantages: Millimeter-level fine-tuning of low-speed gears ensures the safety of precision components.

Ship maintenance

• Scenario: Lifting and welding positioning of large hull components in the shipyard.
• Advantages: Explosion proof electric hoist can be used in flammable environments (such as tanker maintenance) to ensure safe operations.

Special environment application

High temperature/dusty environment

• Scenario: handling of high-temperature steel ingots in metallurgical workshops and operations in dusty environments in foundries.
• Advantages: IP55 protection grade motor is dustproof and waterproof, and high temperature resistant steel wire rope (optional) can adapt to extreme conditions.

Working in narrow spaces

• Scenario: Underground pipeline installation, equipment lifting in tunnel projects.
• Advantages: Compact design (like low headroom hoist) solves space constraints.

Electric hoist with remote control price

Weihua sells various models of electric hoist with remote control. The company provides customized services for special needs. The price range of Electric hoist with remote control ranges from US$1,000 to US$30,000.
