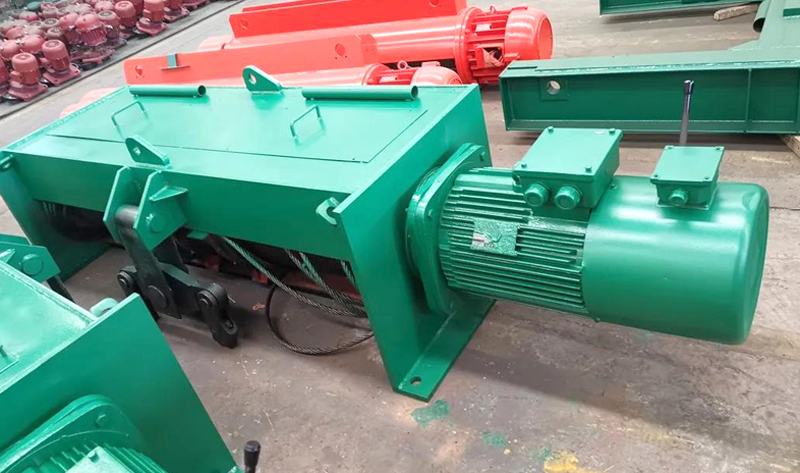

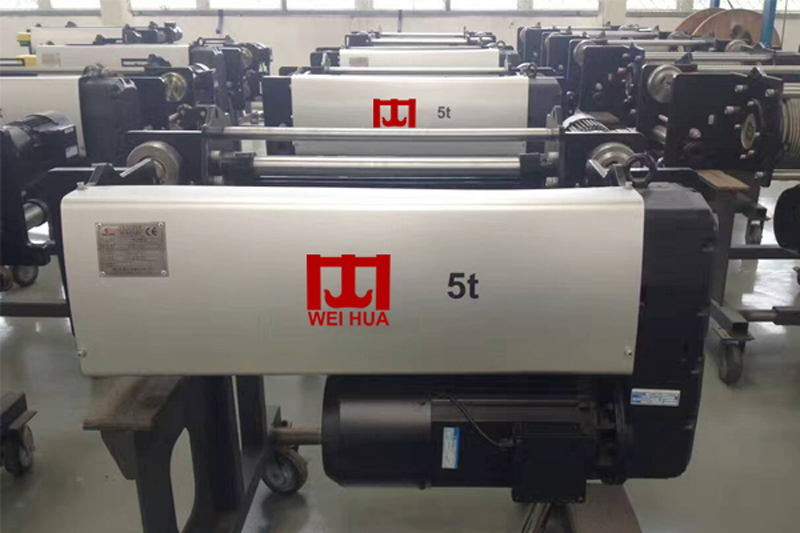

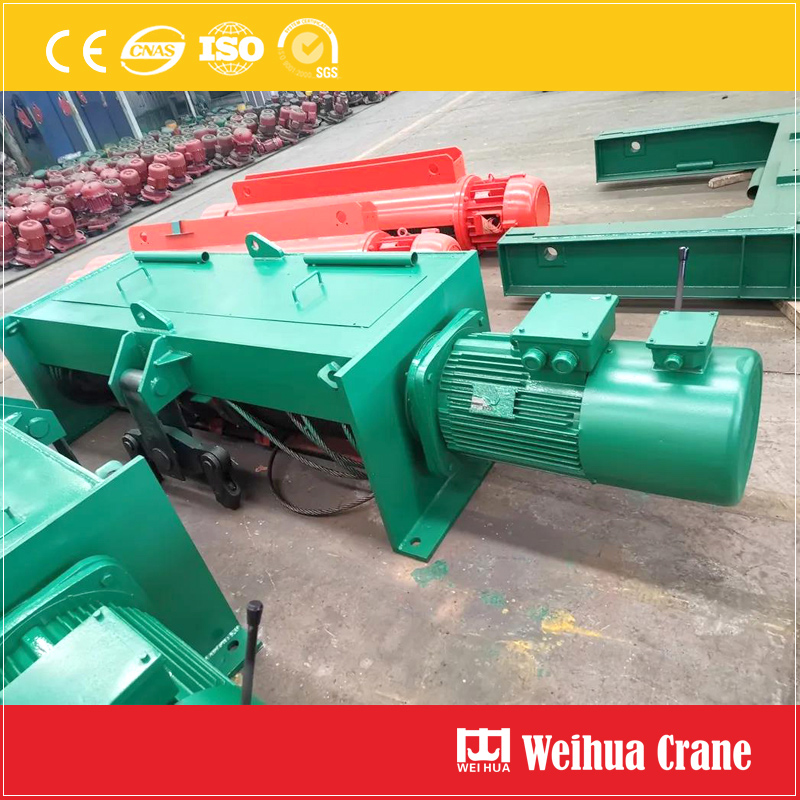

Sistem Hoist Listrik Tiga Fase 480V

Fitur Utama Sistem Hoist Listrik Tiga Fase 480V

• 1. Kapasitas pengangkatan tinggi
  The 480V electric hoist system is capable of handling loads ranging from 1 ton sampai selesai 20 ton, tergantung pada modelnya. This makes it suitable for steel plants, manufacturing lines, gudang, shipyards, dan lokasi konstruksi.

• 2. Efficient Three-Phase Motor
  The system features a three-phase induction motor, known for smooth operation, umur panjang, and energy efficiency. The three-phase setup allows for continuous operation with minimal heat buildup and low vibration.

• 3. Konstruksi yang kuat
  Constructed from high-strength steel and corrosion-resistant components, the hoist is built to withstand harsh environments and demanding workloads. Enclosures are typically rated for dust and moisture protection.

• 4. Precision Controls
  It comes with either a pendant control or a wireless remote control system for safe and precise load positioning. Variable speed options are available for enhanced control during lifting and lowering operations.

• 5. Mekanisme keselamatan
  Safety is a top priority, and these systems are equipped with overload protection, emergency stop functions, perlindungan termal, upper/lower limit switches, and mechanical brakes to ensure safe operations.

• 6. Easy Installation and Maintenance
  Designed for quick integration with existing crane systems (overhead or gantry), the 480V hoist system is also easy to maintain thanks to modular components and accessible parts.

Technical Specification Table – Three Phase 480V Electric Hoist System

Parameter	Spesifikasi
Catu daya	480V AC, 3 Fase, 60Hz
Kapasitas Angkat	1 Ton to 20 Ton (Customizable up to 100 Ton)
Tinggi pengangkat	Standar: 6M, 9M, 12M, 18M (Dapat disesuaikan)
Kecepatan pengangkat	3 - - 8 m/my (Variable speed optional via VFD)
Kecepatan Perjalanan	11 - - 21 m/my (motorized trolley)
Daya motor	1.5 kW to 18.5 KW (tergantung pada kapasitas & configuration)
Motor Type	Motor sangkar tupai asinkron tiga fase
Kelas Isolasi	Kelas F
Tingkat Perlindungan	IP54 / IP55 / IP65 (berdasarkan model)
Control Voltage	24V / 36V / 48V (for safe operation)
Metode Pengendalian	Kontrol liontin / Remote wireless control
Braking System	Electromagnetic or Mechanical Fail-Safe Brake
Batasi sakelar	Atas & Lower Travel Limiters
Load Chain/Wire Rope	Alloy load chain or high-strength galvanized wire rope
Hook Type	Forged steel swivel hook with safety latch
Tipe Pemasangan	Hook suspension / Trolley mounted
Klasifikasi Tugas	FEM 1Am – 3m / ISO M3 – M6 / H2 – H4 (berdasarkan model)
Working Temperature	-20°C to +45°C
Noise Level	≤ 80 dB(A)
Optional Features	Pembatas kelebihan beban, inverter control, anti-sway system

Three Phase 480V Electric Hoist System Applications

Industry	Use Case Example
Manufaktur	Lifting molds, engines, and components
Steel Mills	Handling steel plates, coils, and beams
Pembuatan kapal	Hoisting ship components and machinery
Pergudangan & Logistik	Loading/unloading pallets and crates
Otomotif	Engine assembly and part transfers on production lines
Pertambangan & Energi	Lifting drilling equipment and heavy tools

Benefits of Using a 480V Three-Phase System

• 1. Energy Efficiency: Lower energy losses compared to single-phase motors

• 2. Greater Load Capacity: Suitable for lifting heavy materials over long duty cycles

• 3. Reduced Operating Costs: Longer motor lifespan and less maintenance downtime

• 4. Keamanan yang ditingkatkan: Built-in safety features reduce the risk of accidents and damage

Itu Three Phase 480V Electric Hoist System is a versatile, kuat, and efficient tool for heavy lifting operations. Whether installed on an overhead crane system or used as a standalone unit with a motorized trolley, it delivers outstanding performance under demanding conditions. With advanced safety features, multiple control options, and minimal maintenance needs, it is a long-term investment for any industrial lifting application.
