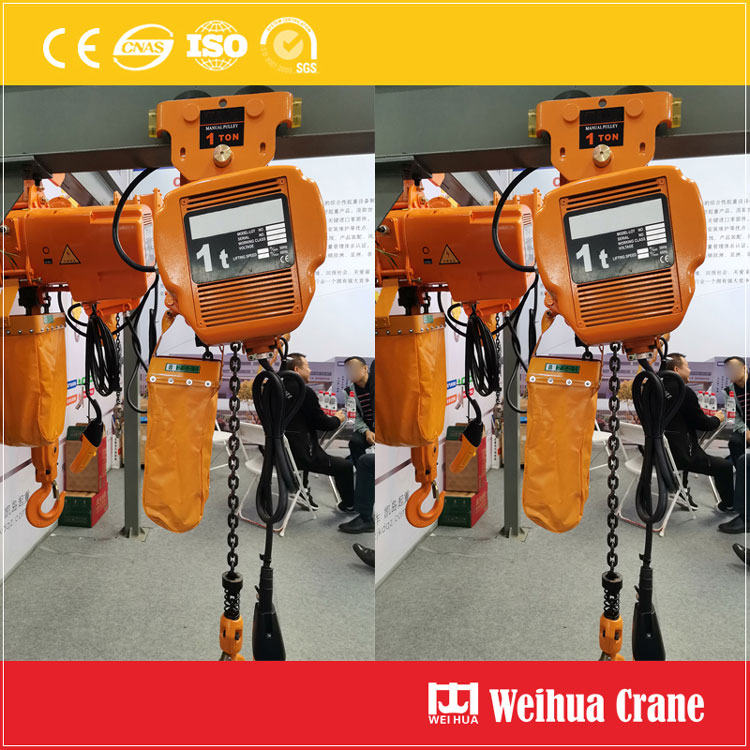

Low headroom electric chain hoist

WeiHua Low Headroom Electric Chain Hoist is engineered specifically for applications where ceiling clearance is critical. Our innovative design delivers powerful, reliable lifting performance while minimizing the required headroom, making them the perfect solution for confined workshops, production lines, mezzanines, and low-clearance facilities.

Engineered for Tight Spaces: The WeiHua Low Headroom Electric Hoist Advantage

• Ultra-Compact Hook Approach: The defining feature of our low headroom electric chain hoist is its significantly reduced hook-to-hook distance compared to standard models. This maximizes usable lift height under low ceilings.

• Optimized Trolley Design: Integrated or matching low-profile trolleys (pendant or radio-controlled) maintain the minimal headroom requirement throughout the entire travel path.

• Space-Saving Construction: Every component, from the compact gearbox to the efficiently designed motor and housing, contributes to the overall low headroom footprint.

• Stable & Secure Lifting: Despite the compact size, WeiHua цанисны deliver exceptional stability and control, ensuring safe load handling even in restricted spaces.

Technical Specifications (Example – Range Varies)

Өвөрмөц	Лал дохолт
Хүчин чадал	0.5 тонн, 1 тонн, 2 тонн, 3 тонн, 5 тонн, 10 тонн, 15 тонн, 20 тонн (Стандарт)
Өргөх хурд	Standard Lift: 3/8 м / ухаан хумс (Dual Speed: Жишээ нь e., 3/8 м / ухаан хумс & 0.8/1.0 м / ухаан хумс)
Өргөх өндөр	Тохируулах боломжтой (Typically up to 30m or more)
Duty Class	FEM 1Am, ISO M4 (Стандарт) / Эмэгтэй 2м, Бил М5 / FEM 3m, ISO M6 (Available)
Цөсний нөөц	220Т / 230Т / 240V 1ph 50/60Hz, 380Т / 400Т / 415Т / 440V 3ph 50/60Hz
Удирдах	Pendant Control (8m standard), Алсын удирдлагатай цахилгаан өргөгч, Crane System Integration
Chain	Alloy Steel (Grade 80 or 100), Stainless Steel (Сайн дурын)
Protection	IP54, IP65 (Hoist) / IP55 (Trolley)
Standards	Члэл авчээ, Исаа 4301, Исаа 12488-1, FEM 9.661, AS 1418, GB/T 3811

Powerful Performance Meets Precision

• Robust Lifting Capacities: Available in capacities ranging from 0.5 ton to 20 tons (and higher upon request) to meet diverse industrial needs.

• Dual Lifting Speeds: Standard models feature regular speed and precise micro-speed options for accurate positioning and safe load landing.

• Reliable Electric Motor: High-efficiency, thermally protected motors ensure consistent performance, long service life, and overload protection.

• Durable Load Chain: High-tensile strength, heat-treated alloy steel chain provides exceptional durability and safety. Optional stainless steel chain available.

• Тэгш & Quiet Operation: Precision gearing ensures smooth lifting and lowering with minimal noise.

Superior Control & Аюулгүй байдлын онцлог

• Intuitive Control: Options include pendant control (IP65 rated for durability), radio remote control (wireless freedom), or integration into crane control systems.

• Comprehensive Safety Systems: Includes upper and lower mechanical limit switches, phase protection, emergency stop, overload protection, and optional chain container.

• Guide Roller System (Сайн дурын): Minimizes load swing for safer operation in tight quarters, a crucial feature for a low headroom electric chain hoist.

• Certified Safety: Designed and manufactured to meet or exceed international standards (Члэл авчээ, Исаа, FEM, AS, GB).

Versatile Applications for Low Headroom Environments

WeiHua Low Headroom Electric Chain Hoists are ideal for:

• Manufacturing assembly lines with low overhead structures

• Warehouses with mezzanine floors or limited ceiling height

• Workshops, garages, and repair bays

• Power plants and utility rooms

• Foundries and forging shops

• Any application where maximizing lift height under a low ceiling is essential

Why Choose WeiHua Low Headroom Electric Chain Hoist?

• Maximize Usable Height: Get the most lift possible under low ceilings.

• Proven Reliability: Built with high-quality components for demanding industrial use.

• Enhanced Safety: Comprehensive features protect personnel and loads.

• Global Compliance: Meets major international safety and performance standards.

• Customizable Solutions: Tailor capacity, lift height, speed, voltage, and control to your specific needs.

• Worldwide Support: Backed by WeiHua’s extensive global service and parts network.

Don’t let low ceilings limit your lifting capabilities. The WeiHua Low Headroom Electric Chain Hoist provides the power, precision, and compact design you need to operate efficiently in confined spaces.
