Warehouse electric hoist for pallet racking

Designed for the Demands of Racking Environments

• 1. Robust Lifting Capacity & Precision:

  • Heavy-Duty Performance: Engineered to handle capacities ranging from 1 ton up to 20 ton or more, effortlessly lifting standard and heavy palletized goods common in warehouse pallet racking.

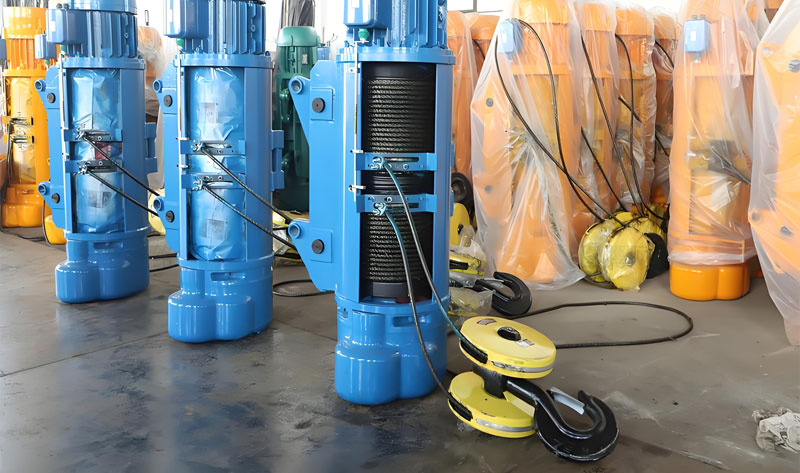

  • Smooth & Controlled Lifting: Features a powerful, thermally protected electric motor driving a reliable wire rope drum. Precision gear reduction ensures smooth, controlled ascent and descent, even at full capacity, preventing load swing that could damage racking or goods.
  • Optimized Lift Height: Configurable lift heights (e.g., 3m / 10ft, 6m / 20ft, 9m / 30ft+) specifically tailored to match the vertical clearances of common pallet racking configurations (selective, drive-in, push-back, pallet flow).

• 2. Seamless Integration with Pallet Racking:

  • Versatile Mounting Solutions: Designed for effortless integration into your warehouse structure:
    • Overhead Beam Mounting: Securely attaches to the cross-beams of your pallet racking frame using robust clamps or dedicated mounting plates.
    • Trolley-Mounted (Optional): For applications requiring lateral movement along a beam, compatible trolleys allow the hoist to traverse the width of a bay within the racking system.
    • Monorail Integration: Can be incorporated into a dedicated overhead monorail system running parallel to racking aisles.
  • Low Headroom electric chain hoist Design: Engineered profile minimizes the space required above the load, crucial for maximizing storage height within pallet racking bays and working effectively in warehouses with height constraints.

• 3. Operator-Centric Control & Safety:

  • Intuitive Control Systems:
    • Pendant Control: Standard ergonomic, low-voltage pendant with clearly marked UP/DOWN buttons, emergency stop, and often variable speed control. Durable cable or wireless options available.
    • Radio Remote Control (Optional): Provides operators greater freedom of movement and improved visibility during lifting operations within the racking aisle. Features secure frequency hopping and emergency stop.
  • Comprehensive Safety Architecture:
    • Overload Protection: Integral load limiter prevents operation beyond rated capacity, protecting both the hoist and your pallet racking structure.
    • Upper/Lower Limit Switches: Automatically cuts power at preset maximum lift and lower positions, preventing over-travel collisions with the racking or floor.
    • Phase Monitoring & Thermal Protection: Safeguards the motor against voltage irregularities and overheating during intensive warehouse use.
    • Mechanical Braking: Dual braking systems (primary electromagnetic brake, secondary mechanical brake) ensure failsafe holding of the load at any height.
    • Emergency Stop: Instantly cuts all power to the hoist motor from both pendant and remote.
    • Compliance: Manufactured to stringent international safety standards (e.g., EN 13155 for lifting equipment, CE, UL).

• 4. Essential Components for Pallet Handling:

  • Standard Hook: Heavy-duty, swiveling forged steel hook with safety latch for general attachment.
  • Pallet Lifting Attachment (Critical): A variety of specialized below-the-hook devices are available to securely engage pallets:
    • Pallet Fork Attachment: Robust forks (adjustable or fixed width) slide directly into pallet stringers.
    • Drum Clamp Attachment: For handling specific cylindrical loads often stored on racking.
    • Custom Attachments: Designed for unique load types within your specific warehouse pallet racking setup.

Why Choose Our Electric Hoist for Your Pallet Racking?

• 1. Dramatically Increased Productivity: Load and unload upper levels of pallet racking in seconds, not minutes. Reduce reliance on forklifts for high-level access.
• 2. Enhanced Safety: Eliminate the risks associated with manual lifting, ladder use, or unstable platforms near racking. Built-in safety features protect personnel and inventory.
• 3. Improved Ergonomics: Remove the physical strain of lifting heavy pallets manually, reducing worker fatigue and injury.
• 4. Optimal Space Utilization: Efficiently utilize the full height of your warehouse pallet racking, potentially delaying costly expansion.
• 5. Reduced Product & Racking Damage: Precise, controlled lifting minimizes the risk of pallets impacting beams or uprights within the racking system.
• 6. Versatility: Handle diverse palletized loads safely and efficiently at any level within your racking structure.
• 7. Lower Operating Costs: Reduced labor requirements per pallet moved, decreased reliance on fuel-powered equipment, and minimized damage-related costs.

Warehouse electric hoist for pallet racking technical specifications

Parameter	Specification
Capacity	1 ton – 20 ton
Lift Height	3m – 15m+ (Customizable)
Lifting Speed	4-8 m/min (Single Speed) or Variable Speed options
Power Supply	230V/400V/480V 3Ph 50/60Hz (Common), other voltages available
Duty Class	Typically FEM 1Am / H3 (Medium to Heavy Duty for warehouse use)
Control	Pendant (8m, 12m) and/or Radio Remote (Secure)
Protection Class	IP54 / IP55 (Dust and water spray resistant)
Ambient Temperature	-20°C to +40°C
Safety Features	Overload limiter, Upper/Lower limits, Dual Brakes, Emergency Stop, Phase Monitoring

Warehouse electric hoist for pallet racking Applications

• 1. Loading/Unloading pallets onto upper levels of selective, drive-in, push-back, or pallet flow racking.
• 2. Handling heavy or awkward items stored on pallet racking.
• 3. Order picking operations requiring retrieval from high bays.
• 4. Maintenance tasks within the racking structure.
• 5. Dense storage environments (AS/RS support).

Our warehouse electric hoist for pallet racking is more than just lifting equipment; it’s a strategic investment in the efficiency, safety, and vertical potential of your storage operation. Engineered specifically for the rigors of warehouse environments and the unique demands of pallet racking systems, it delivers unparalleled performance and reliability. Transform how you access your vertical storage – unlock greater productivity and safety today. Contact us for a detailed consultation to specify the perfect hoist system for your pallet racking configuration.
