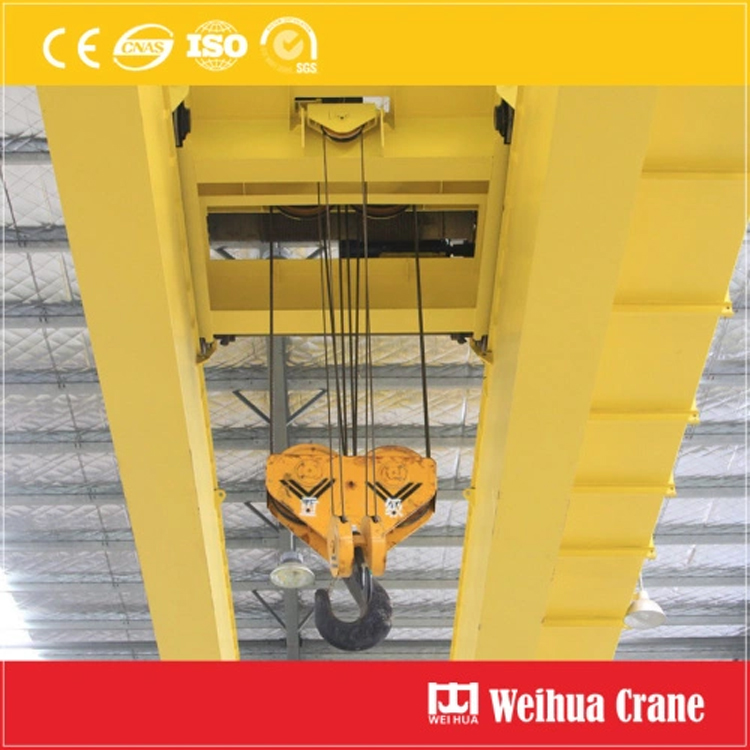

50 Tons Double Girder Overhead Crane

As a core equipment in heavy-duty material handling, the 50 tons double girder overhead crane is specially designed to meet the lifting needs of large-tonnage, high-precision and continuous operation scenarios. Combining advanced structural design, reliable performance and intelligent control, it has become an indispensable key facility in industries such as metallurgy, machinery manufacturing, port terminals, power stations and heavy industry workshops, providing stable and efficient support for the smooth operation of production lines.

Product Overview

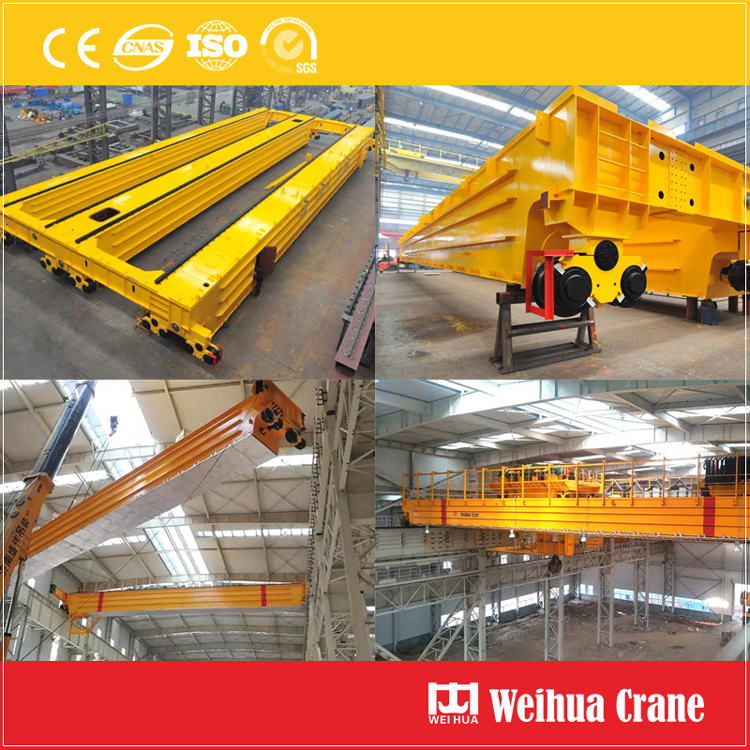

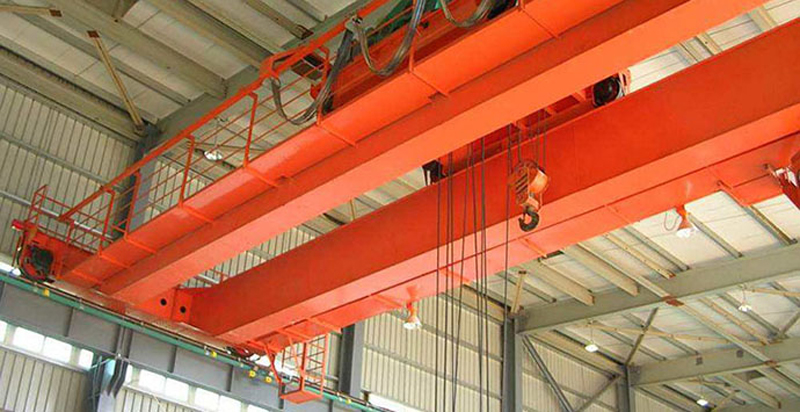

The 50 tons double girder overhead crane adopts a double main girder structure, which is scientifically designed to distribute the load evenly, ensuring excellent bearing capacity and structural stability even under long-term full-load operation. With a rated lifting capacity of 50 tons, it can be flexibly configured with different spans (ranging from 10m to 35m) and lifting heights (from 6m to 30m) according to the actual needs of the workplace, adapting to various large-scale factory buildings and operation spaces. The whole crane is composed of main girder, end girder, trolley, hoisting mechanism, traveling mechanism, electrical control system and safety protection device, each part is strictly tested and manufactured to meet international industry standards, ensuring long-term reliable operation.

50 Tons Double Girder Overhead Crane Technical Specifications

50 Tons Double Girder Overhead Crane Core Structural Advantages

• 1. Double Girder Structure: Compared with single girder cranes, the double girder design has larger load-bearing capacity and better stability. The main girder is made of high-quality Q355B steel plate, which is formed by professional welding and heat treatment, effectively eliminating welding stress, improving structural strength and durability, and avoiding deformation under heavy load. The optimized cross-section design of the main girder also reduces the self-weight of the crane while ensuring bearing capacity, saving energy consumption during operation.
• 2. High-Performance Hoisting Mechanism: The hoisting mechanism adopts a high-power variable-frequency motor and a hard-tooth surface reducer, which has the advantages of smooth lifting, low noise, high transmission efficiency and strong overload capacity. The wire rope is made of high-strength galvanized steel wire, which is wear-resistant, corrosion-resistant and has a long service life, ensuring safe and stable lifting of 50-ton heavy objects. The hoisting speed can be steplessly adjusted, realizing precise positioning of heavy objects, which is suitable for occasions requiring high-precision handling.
• 3. Stable Traveling Mechanism: Both the crane traveling (longitudinal travel) and the trolley traveling (transverse travel) adopt frequency conversion speed regulation, which ensures smooth start and stop, no impact, and effectively protects the crane structure and the lifted objects. The traveling wheel is made of wear-resistant cast steel, which is matched with a high-precision bearing, reducing friction resistance and improving traveling stability and accuracy. The traveling mechanism is also equipped with a buffer device and a limit switch to prevent collision and ensure safe operation.

Intelligent Control & Safety Protection

The 50 tons double girder overhead crane is equipped with an advanced electrical control system, which adopts PLC control and touch screen operation, with simple operation, clear display and strong operability. The control system has multiple protection functions such as overload protection, overvoltage protection, undervoltage protection, phase failure protection and emergency stop, which can timely cut off the power supply when an abnormality occurs, avoiding safety accidents.

In addition, the crane is also equipped with a variety of safety devices: the lifting height limit switch prevents the hook from overtraveling; the trolley and crane travel limit switches prevent collision with the end of the track; the overload limiter can accurately detect the lifting load, and issue an alarm and cut off the hoisting power supply when overloaded; the anti-sway device reduces the sway of heavy objects during lifting and traveling, improving operation safety. All safety devices meet the requirements of international safety standards, providing all-round protection for operators and equipment.

50 Tons Double Girder Overhead Crane Application Scenarios

With its strong load-bearing capacity and stable performance, the 50 tons double girder overhead crane is widely used in various heavy-duty industries:

• 1. Metallurgical Industry: Lifting and transporting molten steel ladles, steel ingots, steel plates and other heavy materials in steel plants and foundries.
• 2. Machinery Manufacturing: Hoisting large mechanical parts, molds, equipment assemblies, etc., realizing the transfer and installation of heavy equipment.
• 3. Port Terminals: Loading and unloading large cargo, containers, mechanical equipment and other goods, improving the efficiency of port handling.
• 4. Power Stations: Hoisting and maintaining large generators, transformers, boilers and other equipment, ensuring the normal operation of power generation equipment.

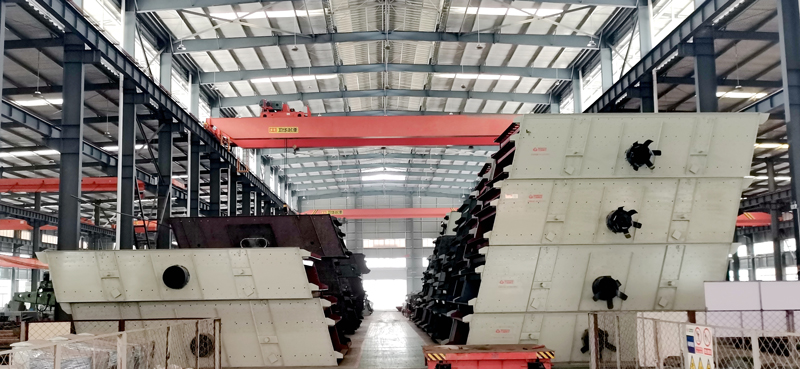

• 5. Heavy Industry Workshops: Handling large workpieces, raw materials and other items in heavy machinery, shipbuilding, aerospace and other workshops.

Product Features & After-Sales Service

In addition to the above advantages, the 50 tons double girder overhead crane also has the characteristics of easy maintenance, low maintenance cost and long service life. All key components are standardized and universal, which is convenient for replacement and maintenance; the surface of the crane is treated with anti-corrosion spraying, which can adapt to harsh working environments such as humidity and dust.

We provide comprehensive after-sales service, including on-site installation, commissioning, operator training, regular maintenance and technical support. Our professional after-sales team has rich experience and can quickly solve various problems encountered during the use of the crane, ensuring that the crane is always in good operating condition. We also provide customized services according to the special needs of customers, tailoring the most suitable 50 tons double girder overhead crane solution for different workplaces and lifting requirements.

The 50 tons double girder overhead crane is a heavy-duty lifting equipment integrating reliability, efficiency, safety and intelligence. It solves the pain points of large-tonnage material handling, improves production efficiency, reduces labor intensity, and brings greater economic benefits to enterprises. Choosing our 50 tons double girder overhead crane is to choose a stable and reliable lifting partner for your production and operation.
