As a pivotal heavy-duty material handling equipment in industrial fields, the Weihua 20 tons overhead crane is engineered to deliver reliable, efficient, and safe lifting solutions for a wide range of heavy-load operations. Designed and manufactured by Weihua—one of the world’s leading crane manufacturers—this 20 tons overhead crane strikes the perfect balance between strength, versatility, and cost-effectiveness, making it an ideal choice for factories, warehouses, steel mills, and various heavy-industry workshops that require stable and precise handling of 20-ton loads.

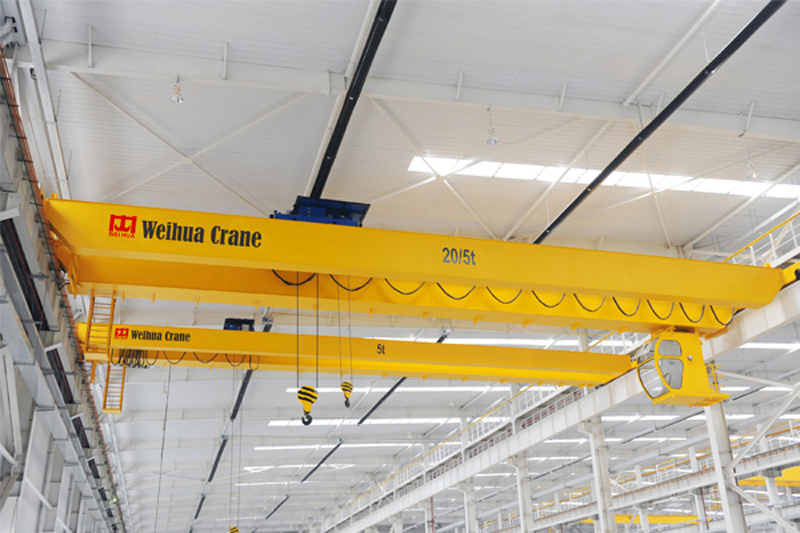

20 Tons European double girder bridge crane with electric hoist
Core Features of Weihua 20 Tons Overhead Crane
The Weihua 20 tons overhead crane integrates advanced technology and rigorous manufacturing standards, boasting outstanding features that set it apart from ordinary 20 tons overhead crane models, ensuring long-term stable operation and enhanced workplace productivity.
- 1. Robust and Durable Structure: The crane adopts a rigid box-type main girder, which is fabricated with high-quality steel plates and processed by automatic welding technology. After welding, the entire body undergoes shot blasting treatment to release internal stresses, effectively preventing deformation and extending service life. The main girder and end carriages are connected by 10.9-grade high-strength bolts, ensuring strong bearing capacity and structural stability even under frequent heavy-load operations.
- 2. Safe and Reliable Operation: Safety is the top priority of Weihua 20 tons overhead crane. It is equipped with a comprehensive safety protection system, including overload limiter, lifting and traveling limit switches, interlocking protection device, buffer, anti-collision device, emergency brake system, and motor overload protection device. These devices work together to prevent potential hazards, protect operators, equipment, and materials, complying with international safety standards and obtaining EU CE certification, ISO series management system certification, and special equipment manufacturing Class A license.
- 3. Efficient and Smooth Performance: Powered by high-quality electric reducer or traditional LD drive system, the 20 tons overhead crane operates smoothly with soft starting and stopping, low noise, and high transmission efficiency. The lifting speed and traveling speed can be adjusted according to actual needs, with lifting speed ranging from 0.3 to 10.7 m/min and traveling speed from 3 to 68 m/min, enabling precise positioning and efficient material handling, which greatly improves work efficiency and reduces labor intensity.
- 4. Flexible Customization & Easy Maintenance: Weihua understands that different industries have unique lifting needs. The 20 tons overhead crane offers flexible customization options, including span (7.5~34.5m), lifting height (6~18m), control mode (push button pendant, radio remote control, or cab control), and special designs for explosion-proof, insulation, or high-temperature environments. Additionally, the crane features a simple and reasonable structure, with easily accessible components and standardized parts, making daily inspection and maintenance convenient and reducing maintenance costs and downtime.

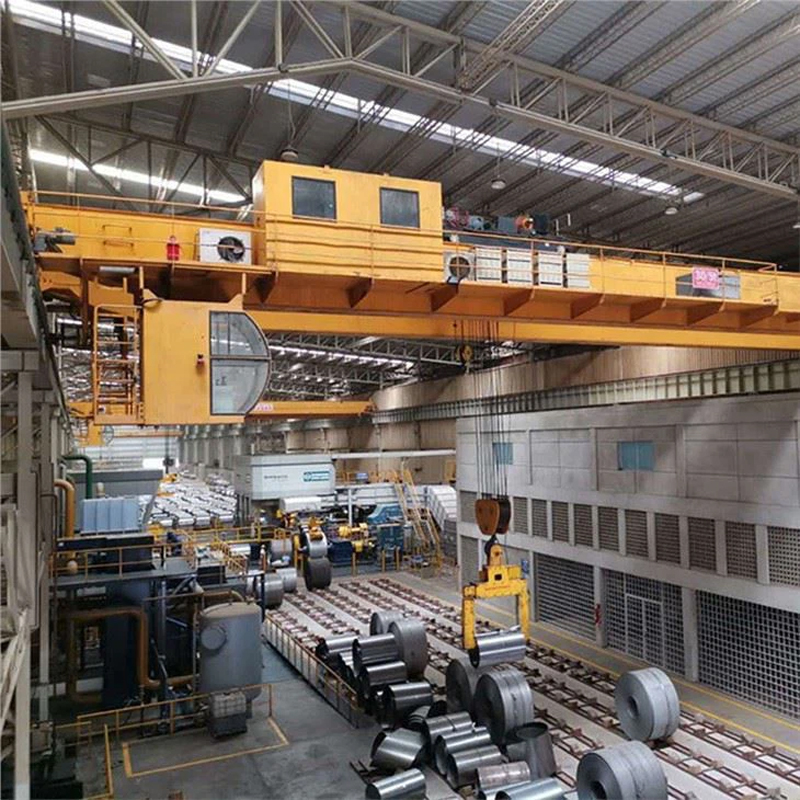

20 ton bridge crane for steel coil handling
Technical Specifications of Weihua 20 Tons Overhead Crane
|
Parameter
|
Specification
|
|
Lifting Capacity
|
20 Tons
|
|
Span
|
7.5 ~ 34.5 m (Customizable)
|
|
Lifting Height
|
6 ~ 18 m (Customizable)
|
|
Lifting Speed
|
0.3 ~ 10.7 m/min (Adjustable)
|
|
Hoist Traveling Speed
|
2 ~ 37.2 m/min
|
|
Crane Traveling Speed
|
3 ~ 68 m/min
|
|
Work Duty
|
A3 ~ A6
|
|
Power Supply
|
380V, 50Hz, 3Phase (Customizable according to regional standards)
|
|
Control Mode
|
Push Button Pendant, Radio Remote Control, Cab Control
|
Applications of Weihua 20 Tons Overhead Crane
The Weihua 20 Tons Overhead Crane is a versatile 20 tons overhead crane that widely applies to various industries requiring heavy-duty material handling. Its strong adaptability and stable performance make it an indispensable equipment in the following scenarios:
- 1. Steel Metallurgy Industry: Used for lifting steel coils, steel plates, steel billets, and ladles in steel mills and steel fabrication workshops, supporting the entire production process from raw material handling to finished product stacking.
- 2. Manufacturing Industry: Suitable for lifting large machine parts, molds, engines, and assemblies in automobile manufacturing, machinery manufacturing, and equipment assembly workshops, realizing efficient production line operation.
- 3. Warehousing & Logistics: Ideal for loading, unloading, and stacking heavy goods, containers, and raw materials in large warehouses, logistics centers, and freight yards, improving storage and transportation efficiency.
- 4. Energy & Power Industry: Used in power plants, hydropower stations, and energy facilities for lifting turbines, generators, and other heavy equipment during installation and maintenance.
- 5. Other Industries: Also applicable to construction sites, shipyards, ports, and chemical plants (with explosion-proof customization), meeting the diverse lifting needs of different industrial fields.

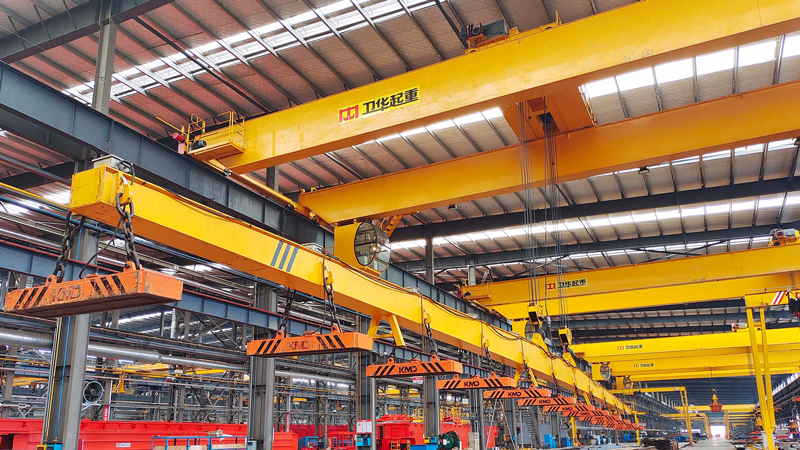

20 tons overhead crane with electromagnetic spreader
Why Choose Weihua 20 Tons Overhead Crane?
As a leading enterprise in China’s crane industry, Weihua has focused on research, development, production, and after-sales service of material handling equipment for many years, with products serving more than 100 countries and regions worldwide. Choosing the Weihua 20 Tons Overhead Crane means choosing reliability, efficiency, and professional support:
- • Superior Quality Assurance: Adopting advanced manufacturing technology, high-quality materials, and strict quality control procedures, each 20 tons overhead crane undergoes rigorous testing before leaving the factory to ensure stable performance and long service life.
- • Cost-Effective Solution: Compared with European and American top brands, Weihua 20 Tons Overhead Crane offers more competitive prices while providing equivalent technology and quality, helping customers reduce investment costs without compromising performance.
- • Professional Customization Capability: Weihua’s R&D team can tailor the 20 tons overhead crane according to customers’ specific needs, including non-standard specifications, special working environments, and automation solutions, ensuring the equipment perfectly matches the actual production scenario.
- • Global After-Sales Service: Weihua has a global service network, providing one-stop services including design, production, installation, training, maintenance, and repair. Experienced after-sales engineers offer timely technical support and lifelong service, solving customers’ worries in the whole process.
Contact Us
If you are looking for a high-quality, reliable 20 tons overhead crane to optimize your material handling process, the Weihua 20 Tons Overhead Crane is your best choice. Contact us today to get a customized quote, detailed technical parameters, and professional consulting services. Weihua is committed to providing you with the most suitable heavy-duty lifting solutions to help your business develop efficiently!
