这样想: 你不会在不牢固的地基上建造房子. 相似地, you should never trust a powerful 电葫芦 to a subpar or incorrectly chosen mounting bracket. This crucial component is the critical link between your hoist and the overhead support structure, ensuring everything stays safe, secure, and operational.

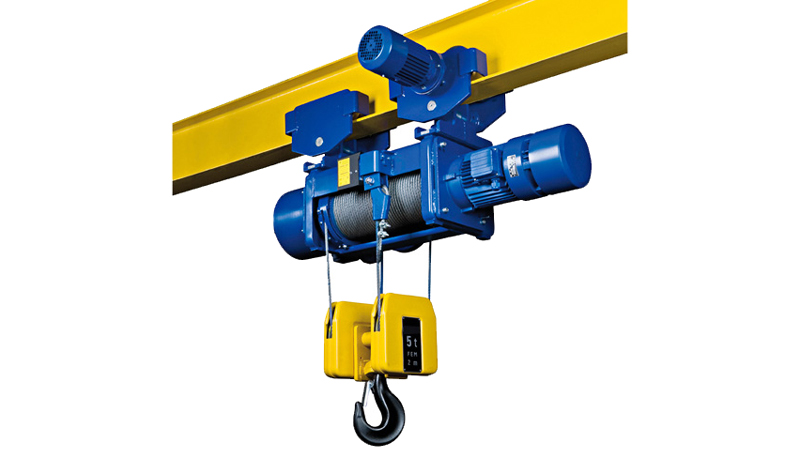

Today, we’re shining a well-deserved spotlight on the electric hoist mounting bracket for I-beam.
Why is the Right Mounting Bracket So Important?
The primary function of the bracket is to provide a secure and stable connection. Its importance boils down to three key factors:
- 1. 安全: This is non-negotiable. A failure of the mounting bracket can lead to catastrophic accidents, causing injury, damage to equipment, and loss of load. The right bracket is engineered to handle the hoist’s rated capacity and the dynamic forces during lifting and moving.
- 2. Performance: A properly fitted bracket ensures smooth travel along the I-beam flange. It minimizes wobbling, binding, or jerky movement, which can wear out your hoist and trolley prematurely.
- 3. 多功能性: The right bracket system allows you to optimize your hoist’s coverage within your workspace, enabling you to lift and move loads precisely where you need them.
Key Components of a Standard I-Beam Mounting Bracket
While designs vary, most brackets consist of a few essential parts:
- 1. Trolley Frame: The main body that houses the wheels and connects to the hoist.
- 2. Axle & Wheels: The wheels ride along the bottom flange of the I-beam, allowing the entire unit to travel.
- 3. Load Shackle or Hook: The point from which the electric hoist itself is suspended.
- 4. Adjustment Mechanism: This is the most critical feature for a secure fit. Many brackets have adjustable end trucks or spacers to fit a range of I-beam flange widths.
Choosing the Correct Bracket: What You MUST Know
You can’t just pick any bracket off the shelf. Here’s what to consider:
- 1. Hoist Capacity: The bracket must be rated for at least the same capacity as your electric hoist. Never use a bracket with a lower working load limit (WLL).
- 2. I-Beam Flange Width: Measure the width of the I-beam’s bottom flange (the flat, horizontal surface the wheels will ride on). The bracket must be adjustable to fit this width perfectly. A bracket that is too loose will be unstable; one that is too tight won’t fit or will bind.
- 3. Type of Travel: Will the hoist be moved manually by pulling a chain, or is it part of a motorized trolley system? Manual trolley brackets are common for smaller hoists, while powered trolleys are used for heavier capacities or frequent long-distance travel.
- 4. 兼容性: Ensure the bracket is designed to work with your specific hoist model. The clevis pin size and the distance between the mounting holes on the hoist must match the bracket’s hook or shackle.
Installation and Safety Checklist
- 1. Always Consult Manuals: Before installation, read both the hoist manual and the bracket/trolley manual thoroughly.
- 2. Inspect the I-Beam: Ensure the overhead I-beam is structurally sound, rated for the load, and free of rust, damage, or distortion.
- 3. Check for Clearance: Verify there is enough clearance between the top of the hoist and the I-beam web for the hoist to sit properly without interference.
- 4. Secure the Fit: After adjusting the bracket to the flange width, ensure all locking pins, 螺栓, or nuts are securely tightened.
- 5. Perform a Test Lift: Before putting the hoist into full service, perform a test lift with a light load to check for stability and smooth operation.
Don’t let your electric hoist’s mounting bracket be an afterthought. It is a fundamental component of your lifting system’s safety and efficiency. Investing in the right bracket, ensuring it’s properly adjusted, and performing regular inspections are small steps that prevent major problems.
When in doubt, always consult with a qualified engineer or your hoist manufacturer to ensure your setup is safe and compliant with all relevant safety standards.
